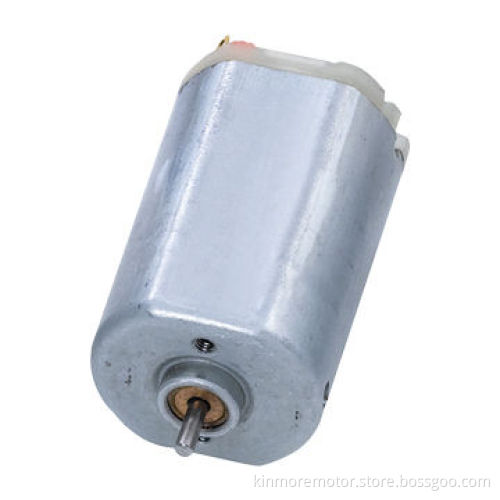

Portable compressor DC motor using in car
  • Portable compressor DC motor using in car
Portable compressor DC motor using in car

Portable compressor DC motor using in car

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Specifications:
    • Model No.:  FS-395PA-3333
    • Rated voltage: 12 V DC
    • Environmental temperature: 25±10℃
    • Environmental humidity: 65%±20% RH
  • Electrical characteristics: (At initial stage after 30 seconds run-in):
    • At No load
      • Speed: 16,000 ±10% rpm
      • Current: 0.38 A (max 0.6A)
    • Max efficiency:
      • Torque: 163.4 g.cm
      • Speed: 13,892 ±10% rpm
      • Current: 2.5 A (max 5A)
    • At stall:
      • Torque: 1240.3 g.cm
      • Current: 16.5 A (max 24.75A)
      • Direction of rotation: CCW (Counter-clockwise when viewing from the output shaft end)
  • Mechanical characteristics:
    • End play: 0.05~0.55mm
    • Operating temperature: -10℃ ~ +60 ℃
  • Model No.:  FS-395PA-3333
  • Rated voltage: 12 V DC
  • Environmental temperature: 25±10℃
  • Environmental humidity: 65%±20% RH
  • At No load
    • Speed: 16,000 ±10% rpm
    • Current: 0.38 A (max 0.6A)
  • Max efficiency:
    • Torque: 163.4 g.cm
    • Speed: 13,892 ±10% rpm
    • Current: 2.5 A (max 5A)
  • At stall:
    • Torque: 1240.3 g.cm
    • Current: 16.5 A (max 24.75A)
    • Direction of rotation: CCW (Counter-clockwise when viewing from the output shaft end)
  • Speed: 16,000 ±10% rpm
  • Current: 0.38 A (max 0.6A)
  • Torque: 163.4 g.cm
  • Speed: 13,892 ±10% rpm
  • Current: 2.5 A (max 5A)
  • Torque: 1240.3 g.cm
  • Current: 16.5 A (max 24.75A)
  • Direction of rotation: CCW (Counter-clockwise when viewing from the output shaft end)
  • End play: 0.05~0.55mm
  • Operating temperature: -10℃ ~ +60 ℃
