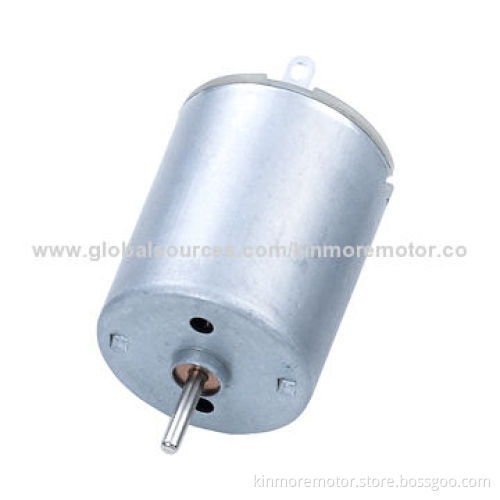

9V DC Electric Micro Brush Motor with Carbon Brush for RC Model/Car

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Specifications:

Iron core
Diameter: 24mm
Length: 30.6mm
Shaft diameter: 2.0mm
Weight: 42g (approx)

Technical data:

Operating range: 3.0-6.0V
Nominal voltage: 9V
No load
- Speed: 11600rpm
- Current: 0.118A
At maximum efficiency
- Speed: 9935rpm
- Current: 0.7A
- Torque: 3.8mNm/38.8g.cm
- Output: 0.55W
At stall
- Stall torque: 26.46mNm/270g.cm
- Stall current: 4.2A
Direction of rotation: CW/CCW
Note: all of the above data could be custom made according to your demand, welcome to send inquiry.

Features:

Plastic end cap
Oil-impregnated bearing
Precious metal brush/carbon brush
Carbon steel shaft
Door lock actuator
Hair clipper
Massager
RC model

Inspection to gurantee reliable quality:

Inspection occurs throughout the whole process flow, unitizing Hexagon CMM, X-ray Spectrometer, mea motor performance testing system, tTension tester, torque tester, motor performance testing system and other geometrical testing equipment, we perform a battery of inspections from tooling, material to finished products as below
Tooling inspection
Material lot acceptance inspection
Material life test
First article inspection
Operator self-inspection
Random inspection
100% inspection to key process and motor electric performance
Final inspection

Customization options:

OEM orders and customized designs are accepted
With the RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small TM)
High-torque at low-speed
PTC protection
Phenolic resin base commentator
Epoxy coating armature
Lightweight and long lifespan

Iron core

Diameter: 24mm

Length: 30.6mm

Shaft diameter: 2.0mm

Weight: 42g (approx)

Operating range: 3.0-6.0V

Nominal voltage: 9V

No load

Speed: 11600rpm
Current: 0.118A

At maximum efficiency

Speed: 9935rpm
Current: 0.7A
Torque: 3.8mNm/38.8g.cm
Output: 0.55W

At stall

Stall torque: 26.46mNm/270g.cm
Stall current: 4.2A

Direction of rotation: CW/CCW

Note: all of the above data could be custom made according to your demand, welcome to send inquiry.
