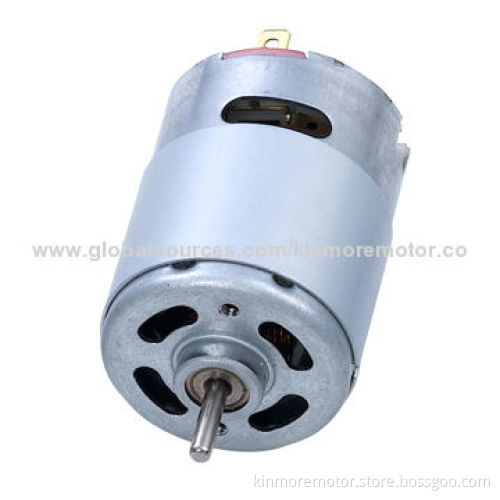

24V DC motor with flux ring for ride-on car

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Features of the motor:

Metal end cap
Class Fmagnet Wire
Leaf brush system
3 slots armature
Carbon Steel Shaft

Dimension of the motor:

Diameter of the motor: 35.8mm
Length of the motor: 57mm
Diameter of the shaft: 3.175mm

Specifications of the motor:

Voltages:
- Operating range: 6.0-24.0V
- Nominal voltage: 24V
No load:
- Speed: 7500rpm
- Current: 0.2A
At Max. efficiency:
- Speed: 6527rpm
- Current: 1.34A
- Torque: 29.3mNm/299g.cm
- Output: 20W
- Stall torque: 225.5mNm/2300g.cm
- Stall current: 9A

Typical applications:

Cordeless power tool
RC model
Ride-on car
EPB/ETC/air pump/door closer

Inspection to guarantee reliable quality:

Tooling inspection
Material lot acceptance inspection
Material life test
First article inspection
Operator self-inspection
Random inspection
100% inspection to key process and motor electric performance
Final inspection

Metal end cap

Class Fmagnet Wire

Leaf brush system

3 slots armature

Carbon Steel Shaft

Diameter of the motor: 35.8mm

Length of the motor: 57mm

Diameter of the shaft: 3.175mm

Voltages:

Operating range: 6.0-24.0V
Nominal voltage: 24V

No load:

Speed: 7500rpm
Current: 0.2A

At Max. efficiency:

Speed: 6527rpm
Current: 1.34A
Torque: 29.3mNm/299g.cm
Output: 20W
Stall torque: 225.5mNm/2300g.cm
Stall current: 9A

Operating range: 6.0-24.0V

Nominal voltage: 24V

Speed: 7500rpm

Current: 0.2A

Speed: 6527rpm

Current: 1.34A

Torque: 29.3mNm/299g.cm

Output: 20W

Stall torque: 225.5mNm/2300g.cm

Stall current: 9A

Cordeless power tool

RC model

Ride-on car

EPB/ETC/air pump/door closer

Tooling inspection

Material lot acceptance inspection

Material life test

First article inspection

Operator self-inspection

Random inspection

100% inspection to key process and motor electric performance

Final inspection
