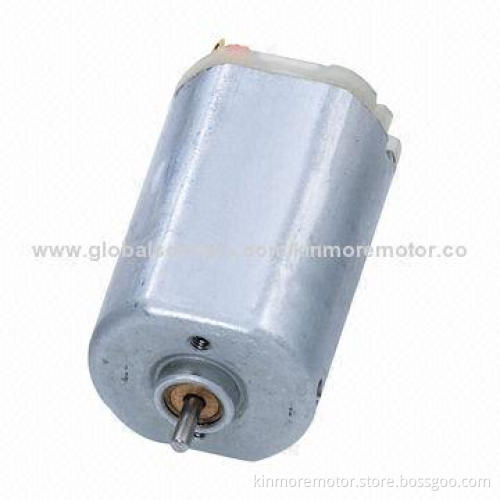

12V Micro Vehicle Electric Motor with High Torque for Car Window Lifter

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Specifications:

Iron core
Diameter: 28.5mm
Length of the housing: 46.5mm
Shaft diameter: 2.3mm
Weight: 96g
Voltage:
- Operating range: 6.0-12.0V
- Nominal voltage: 12V
No load:
- Speed: 4,500rpm
- Current: 0.11A
At maximum efficiency:
- Speed: 3,582rpm
- Current: 0.44A
- Torque: 9mNm/91.8g.cm
Output: 3.22W
Stall torque: 44mNm/448.8g.cm
Stall current: 1.8A
Direction of rotation: CW/CCW
Note: all of above technical data could be custom made according to your demand

Features:

Plastic end cap
Sintered bronze bearing
Leaf brush system
3 slots armature

Typical applications:

Exhaust fan
Headrest regulation
Window lifter

Customization options:

OEM orders and customized designs are accepted
With the RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at low-speed
PTC protection
Phenolic resin base commentator
Epoxy coating armature
Lightweight and long lifespan

Inspection to guarantee reliable quality:

Inspection occurs throughout the whole process flow, unitizing hexagon CMM,X-ray spectrometer, MEA motor performance testing system, tension tester, torque tester, motor performance testing system and other geometrical testing equipment, we perform a battery of inspections from tooling, material to finished products as below:
- Tooling inspection
- Material lot acceptance inspection
- Material life test
- First article inspection
- Operator self-inspection
- Random inspection
- 100% inspection to key process and motor electric performance
- Final inspection
