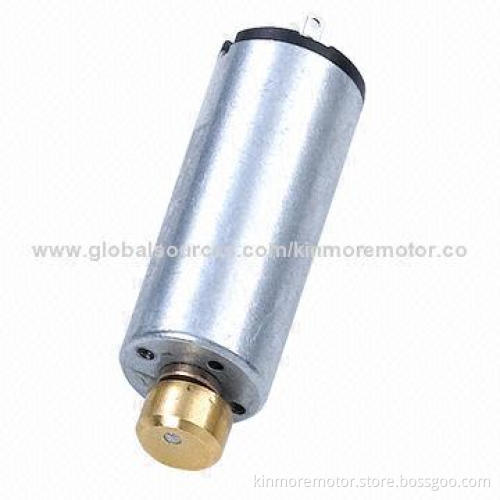

6V DC adult toy motor, Shenzhen factory price

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Motor housing (D x L): 24 x 30.5mm

Material: SECD

Shaft (D): 2.0mm carbon steel nickel coating

Way of commutation: carbon brush

Structures: 2-pole stator and 3-slot armature

Rotation: CW/CCW and reversible

With Ø13 x L5 cylinder brass vibrator

Options: extended shaft on the end cap side, EMI/EMC suppression, SECC vibrator

Rated voltage: 12V DC

At N13 x L5 brass vibrator:

Rated speed: 10,800rpm
Rated current: 0.8A (maximum)
Load: diameter 7.5*5.0mm

Customized data requirements are welcomed for our engineer's evaluation

Suitable for car seat massager

Learn more about us:

Our main products: diameter 6 to 52mm DC micro motor and gear motor
Auto DC motor, electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor
Products size range: diameter: 6 to 52mm
DC voltage range: 1.5 to 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 to 30,000rpm
Stall torque: 5 to 30kg.cm

Applications: home appliance, power tools, toys and model, precision instrument, office equipment, personal care product, automotive, audio and visual equipment and more

We assure and excellent after-sales service so contact us now

Rated speed: 10,800rpm

Rated current: 0.8A (maximum)

Load: diameter 7.5*5.0mm

Our main products: diameter 6 to 52mm DC micro motor and gear motor

Auto DC motor, electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor

Products size range: diameter: 6 to 52mm

DC voltage range: 1.5 to 42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1 to 30,000rpm

Stall torque: 5 to 30kg.cm
