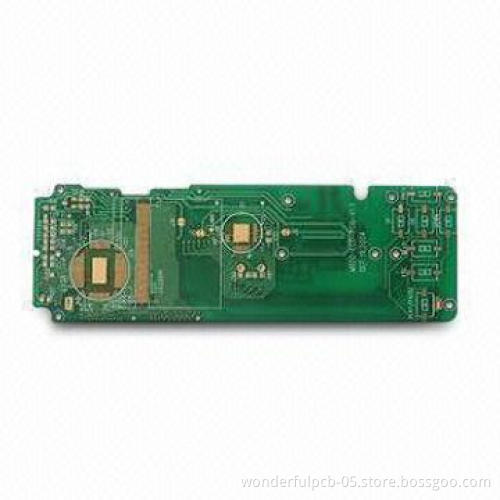

Professional HDI PCB with FR4 TG17O Material, 1.5oz Copper and HASL Finish LPI Green Mask for Mobile

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Reference our production capability for rigid PCB:

Layer: 1 to 28
Board finished thickness: 0.21 to 7.0mm
Materials: FR-4, CEM-1, CEM-3, high TG170, FR4 Halogen free,Rogers
Finished board size: 23 x 25 (580 x 900mm) (maximum)
Drilled hole size: 3 mils (0.075mm) (minimum)
Line width: 3 mils (0.075mm)(minimum)
Line spacing: 3 mils (0.075mm)(minimum)
Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating
Copper thickness: 0.5 to 7.0oz
Solder mask color: green/yellow/black/white/red/blue
Copper thickness in hole: ≥25.0 um (≥1 mil)
Inner packing: vacuum packing/plastic bag
Outer packing: standard carton packing
Shape tolerance: ±0.13
Hole tolerance:
- PTH: ±0.076
- NPTH: ±0.05
Certificate: UL
Special requirements: buried and blind vias + controlledimpedance + BGA
Profiling: punching, routing, V-cut, beveling
Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
