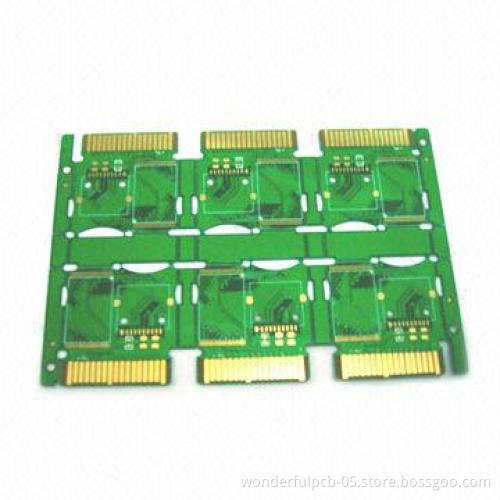

PCB Board with Up to 6oz Copper Thickness, Suitable for Computer Mother Boards

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Layer: 16 layers

Board thickness: 2.0mm

Board size: 112 x 56mm

Surface finish: gold plating

Reference: our production capability for rigid PCB

Layers: 1 to 28

Board finished thickness: 0.21 to 7.0mm

Material: Fr4, CEM1, CEM3, high TG, Fr4 halogen-free,Rogers

Maximum finished board size: 23 x 25mm (580 x 900mm)

Minimum drilled hole size: 3mil (0.075mm)

Minimum line width: 3mil (0.075mm)

Minimum line spacing: 3mil (0.075mm)

Surface finish/treatment: HASL/HASL lead-free, HAL, chemicaltin, chemical gold, immersion silver, gold, OSP, and goldplating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0cm (>1mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

PTH: ±0.076
NPTH: ±0.05

Certificate: UL, ISO:9001, and ISO:14001

Special requirements: buried and blind vias + controlledimpedance + BGA

Profiling: punching, routing, V-cut, and beveling

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products

Disclaimer: All trademarks shown here are for referencepurposes only. They are the property of their respective owners,and we are not authorized to sell items bearing suchtrademarks.

PTH: ±0.076

NPTH: ±0.05
