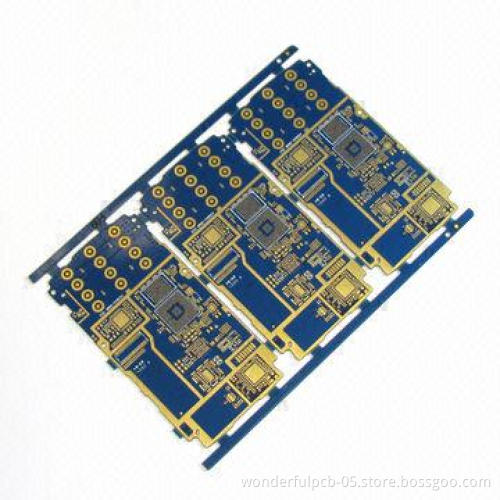

PCB Board for Car Key, with 0.5 to 7.0oz Copper Thickness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

PCB board for car key board

Reference: our production capability for rigid PCB

Layer: 1 to 28

Board finished thickness: 0.21 to 7.0mm

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free andRogers

Finished board size: 23 x 25mm (580 x 900mm) (minimum)

Drilled size of hole: 3mil (0.075mm) (minimum)

Line width: 3mil (0.075mm) (minimum)

Line spacing: 3mil (0.075mm) (minimum)

Surface finish: HASL, HASL lead free, HAL, chemical tin,chemical gold, immersion silver, gold, OSP and gold plating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green, yellow, black, white, red andblue

Copper thickness in hole: >25.0um (>1mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton

Shape tolerance: ±0.13

Hole tolerance:

Certificate: UL

Special requirements: buried and blind vias + controlledimpedance + BGA

Profiling: punching, routing, V-CUT and beveling

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products

PTH: ±0.076

NPTH: ±0.05
