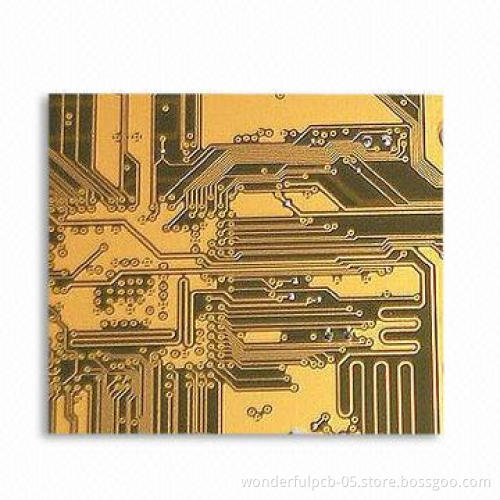

ENIG PCB with 6 layers and 0.2 to 7.0mm board finishthickness

Key specifications:

Material: FR4

Layer: 6

Copper thickness: 1oz

Surface finish: ENIG

Buried and blind hole: no

Application: gas detector, remote control, andtelecommunication products

Reference production capability for rigid PCB:

Layers: 1 to 28

Board finished thickness: 0.2 to 7.0mm

Materials:

FR-4
CEM-1
CEM-3
High TG
FR4 halogen free
Rogers

Maximum finished board size: 23 x 25 (580 x 900mm)

Minimum drilled hole size: 3mil (0.075mm)

Minimum line width: 3mil (0.075mm)

Minimum line spacing: 3mil (0.075mm)

Surface finish/treatment:

HASL/HASL lead free, HAL, chemical tin, and chemical gold
Immersion silver, gold, OSP, and gold plating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green, yellow, black, white, red, andblue

Copper thickness in hole: >25.0µm (>1mil)

Inner packing: vacuum packing per plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

PTH: ±0.076
NPTH: ±0.05

Certifications: UL, ISO 9001, ISO 14001,SGS , and RoHS

Special requirements: buried/blind Vias, controlled impedance,and BGA

Profiling: punching, routing, V-cut, and beveling

FR-4

CEM-1

CEM-3

High TG

FR4 halogen free

Rogers

HASL/HASL lead free, HAL, chemical tin, and chemical gold

Immersion silver, gold, OSP, and gold plating

PTH: ±0.076

NPTH: ±0.05

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
