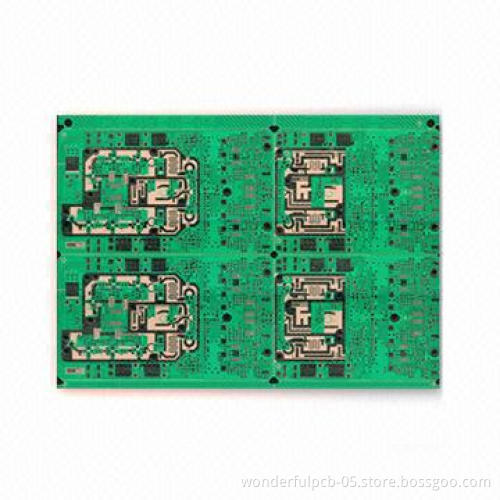

6-layer Printed Circuit Board with Gold Fingers, Used for Small Computer

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

6-layer printed circuit board with gold fingers used for smallcomputer

Our production capability for rigid PCB:

Layers: 1 to 28

Board finished thickness: 0.2 to 7.0mm

Material: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,rogers

Max finished board size: 23 x 25 ( 580 x 900mm )

Min drilled hole size: 3mil (0.075mm)

Min line width: 3mil (0.075mm)

Min line spacing: 3mil (0.075mm)

Surface finish/treatment: HASL/HASL lead-free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, and goldplating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0µm (>1mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

PTH: ±0.076

NPTH: ±0.05

Certificates: UL, ISO 9001, ISO 14001, SGS, and RoHS

Special requirements: buried and blind vias with controlledimpedance and BGA

Profiling: punching, routing, V-cut, beveling

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
