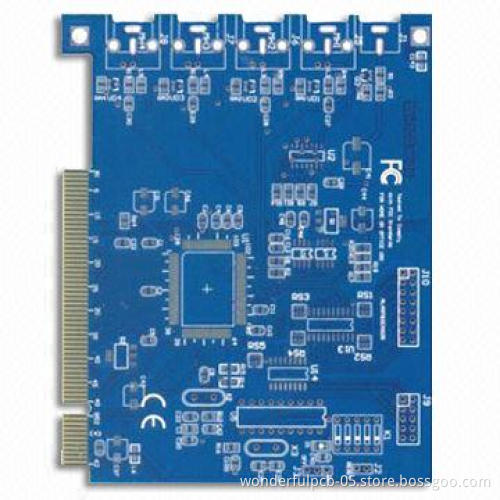

Multilayer PCB with Gold Fingers, Electronic Board, Made of FR4 Material

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Reference: our production capability for rigid PCB

Layers: 1 to 28

Board finished thickness: 0.2 to 7.0mm

Material: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,Rogers

Board finished size: 23 x 25 (580 x 900mm) (maximum)

Drilled hole size: 3 mils (0.075mm) (minimum)

Line width: 3 mils (0.075mm) (minimum)

Line spacing: 3 mils (0.075mm) (minimum)

Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green, yellow, black, white, red andblue

Copper thickness in hole: >25.0μm (>1-mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

With UL and SGS marks

Compliant with RoHS Directive

Special requirements: buried and blind vias, controlledimpedance and BGA

Profiling: punching, routing, V-cut and beveling

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products

PTH: ±0.076

NPTH: ±0.05
