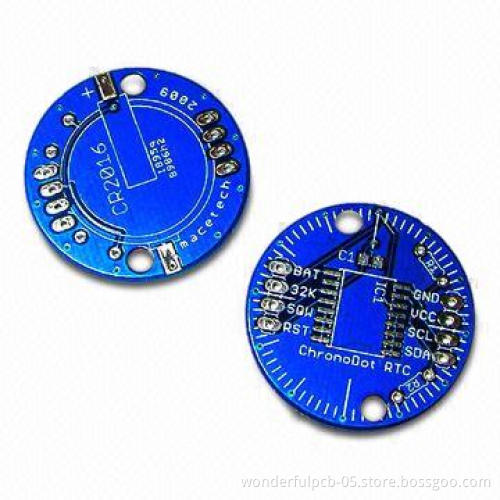

4-layer Round PCB with 90.90 x 91.95mm Size and 0.8mil Hole Size, 3Pcs Films for LED Lights

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Paypal

Product Description

4-layer round PCB with 90.90 x 91.95mm size and 0.8mil holesize, 3pcs films for LED lights

Layer: 4

Copper thickness: 1oz

Soldermask: green

Silkscreen: white

Surface finish: HASL

Buried and blind hole: no

Applications: gas detectors, remote controls andtelecommunication products

Optional capabilities:

Layers: 1 to 28
Board finished thickness: 0.2 to 7.0mm
Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free androgers
Max. finished board size: 580 x 900mm
Min. drilled hole size: 3mil (0.075mm)
Min. line width: 3mil (0.075mm)
Min. line spacing: 3mil (0.075mm)
Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP and goldplating
Copper thickness: 0.5 to 7.0oz
Solder mask color: green/yellow/black/white/red/blue
Copper thickness in hole: >25.0µm (>1mil)
Inner packing: vacuum packing/plastic bag
Outer packing: standard carton packing
Shape tolerance: ±0.13mm
Hole tolerance:
- PTH: ±0.076mm
- NPTH: ±0.05mm
Approvals: UL pending, SGS and RoHS
Special requirements: buried and blind vias, controlledimpedance and BGA
Profiling: punching, routing, V-cut and beveling
