Multilayer PCB with 0.2/0.17mm Minimum Line Width/Space

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

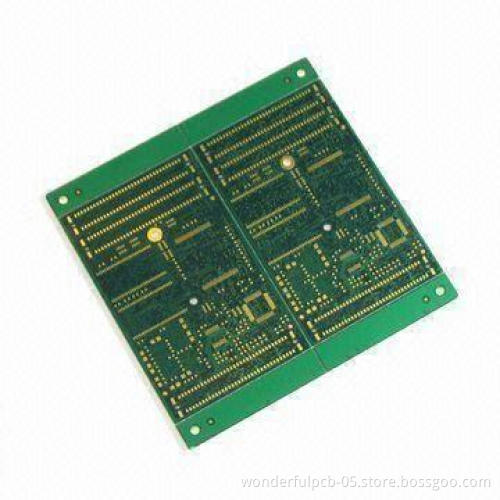

Immersion gold 6 layers of printed circuit board

Material: FR-4 2mm 2/2oz

Minimum line width/space: 0.2mm/0.17mm

Our production capability for rigid PCB:

Layer: 1 to 28

Board finished thickness: 0.21 to 7.0mm

Material: FR-4, CEM-1, CEM-3, high TG, FR4 halogen-free,rogers

Maximum finished board size: 23 × 25 (580 x 900mm)

Minimum drilled hole size: 3mil (0.075mm)

Minimum line width: 3mil (0.075mm)

Minimum line spacing: 3mil (0.075mm)

Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP and goldplating

Copper thickness: 0.5 to 7.0Oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0um (>1-mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

PTH: ±0.076

NPTH: ±0.05

Special requirements: buried and blind Vias + controlledimpedance + BGA

Profiling: punching, routing, V-cut and bevelling

Disclaimer: All trademarks shown here are for referencepurposes only. They are the property of their respective owners,and we are not authorized to sell items bearing suchtrademarks.
