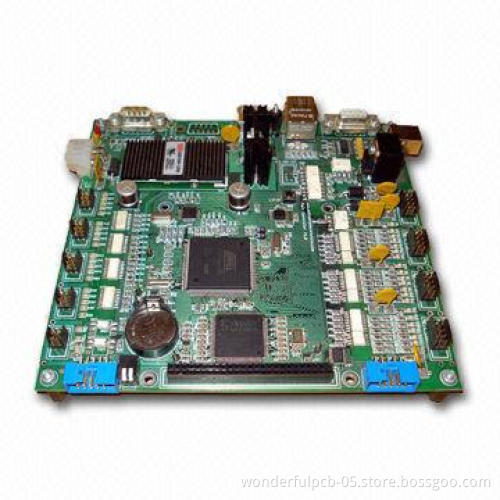

2 Layer PCB Assembly Used for Home Appliances, FR-4, Suface Finish for HASL Lead Free

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

2 layer PCB assembly used for home appliances

PCB board: 1.6mm thickness

Copper thickness: 1OZ

FR-4, suface finish for HASL Lead free

Layer: 1-28

Board finished thickness: 0.21mm-7.0mm

Material: FR-4, CEM-1,CEM-3, High TG, FR4 HalogenFree,Rogers

Max. finished board size: 23 x 25 ( 580mm x 900mm )

Min. drilled hole size: 3mil (0.075mm)

Min. line width: 3mil (0.075mm)

Min. line spacing: 3mil (0.075mm) surface finish/treatment:HASL / HASL lead free,HAL, chemical tin, chemical gold, immersionsilver/gold,OSP,gold plating

Copper thickness: 0.5-7.0 OZ

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0 um (>1mil)

Inner packing: vacuum packing / Plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance: PTH: ±0.076 NPTH: ±0.05

Certificate: UL, ISO 9001, ISO 14001

Special requirements: buried and blind vias+controlledimpedance +BGA

Profiling: punching, routing, v-cut, beveling
