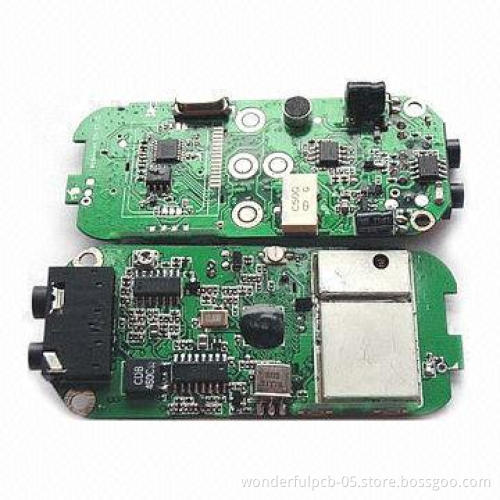

PCBA for DVD/CD Players, Made of FR4 and FR4 Halogen Free Materials
  • PCBA for DVD/CD Players, Made of FR4 and FR4 Halogen Free Materials
PCBA for DVD/CD Players, Made of FR4 and FR4 Halogen Free Materials

PCBA for DVD/CD Players, Made of FR4 and FR4 Halogen Free Materials

Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • PCBA applied to DVD/CD players
  • Layer: 1 to 28
  • Board finished thickness: 0.21 to 7.0mm
  • Materials: FR4, CEM-1, CEM-3, high TG and FR4 halogen free
  • Maximum finished board size: 23 x 25mm
  • Minimum drilled hole size: 3 mil (0.075mm)
  • Minimum line width: 3 mil (0.075mm)
  • Minimum line spacing: 3 mil (0.075mm)
  • Silver/gold, OSP, and gold plating
  • Copper thickness: 0.5 to 7.0oz
  • Solder mask color: green/yellow/black/white/red/blue
  • Inner packing: vacuum packing/plastic bag
  • Outer packing: standard carton packing
  • Shape tolerance: ±0.13
  • Hole tolerance:
    • PTH: ±0.076
    • NPTH: ±0.05
  • Special requirements: buried and blind + controlled impedance +BGA
  • Profiling: punching, routing, V-cut, and beveling
  • OEM orders are welcomed
  • Disclaimer: All trademarks shown here are for referencepurposes only. They are the property of their respective owners,and we are not authorized to sell items bearing suchtrademarks.
  • PTH: ±0.076
  • NPTH: ±0.05
