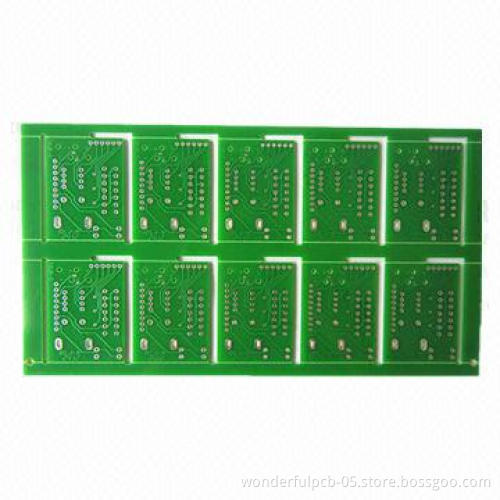

Quick Turn PCB with 4 Layers, FR-4 Base Material, 2oz Copper Thickness, UL Mark

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayP

Product Description

Specifications:

Material: FR-4
Layers: 4
Copper thickness: 2oz
Solder mask: green
Silkscreen: white
Surface finishing: HASL
Buried and blind hole: not supported
Applications: gas detectors, remote controls, telecommunicationproducts
Reference: our production capability for rigid PCB
Layers: 1 to 28
Board finishing thickness: 0.21 to 7.0mm
Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen-free,rogers
Finished board size: 23 x 25mm (580 x 900mm) (maximum)
Drilled hole size: 3 mils (0.075mm) (minimum)
Line width: 3 mils (0.075mm) (minimum)
Line spacing: 3 mils (0.075mm) (minimum)
Surface finishing/treatment: HASL/HASL lead-free, HAL, chemicaltin, chemical gold, immersion silver, gold, OSP and goldplating
Copper thickness: 0.5 to 7.0oz
Solder mask color: green/yellow/black/white/red/blue
Copper thickness in hole: >25.0 um (>1 mil)
Inner packing: vacuum packing/plastic bag
Outer packing: standard carton packing
Shape tolerance: ±0.13
Hole tolerance:
- PTH: ±0.076
- NPTH: ±0.05
Certificate: UL
Special requirements: buried and blind via + controlledimpedance + BGA
Profiling: punching, routing, V-cut and beveling
Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
