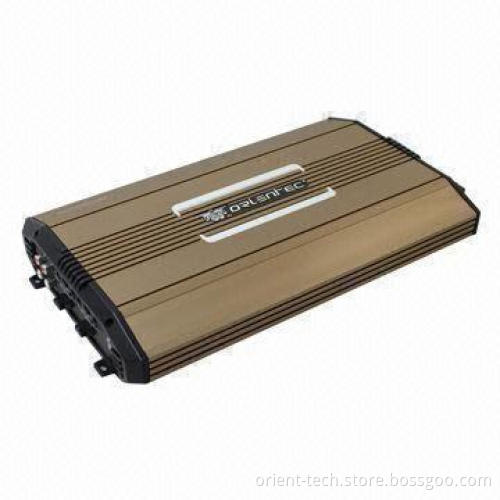

100W x 4 High-End Class-AB Amplifier with 1Ω Stable
  • 100W x 4 High-End Class-AB Amplifier with 1Ω Stable
100W x 4 High-End Class-AB Amplifier with 1Ω Stable

100W x 4 High-End Class-AB Amplifier with 1Ω Stable

Get Latest Price
Payment Type:
30% Deposit and 70% before Shipment
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: 30% Deposit and 70% before Shipment
Product Description
Product Description
  • Key features:
    • 4CH hi-fi class AB topology
    • Pretty middle size, easy installation
    • High and low pass crossovers
    • Popular cosmetic design
    • Heavy duty heatsink: 8.5kg/m
    • High-end SanKen transistor, 2604 professional pre-amp soundprocess, Japanese brand capacitor
    • Double-sided PCB, SMD parts, SMT process, guarantee morestable/reliable operation
    • Audio precision quality control verification
    • Multi-protection built-in (short, over-heat, overload, DCoffset)
    • Lowest static current, less than 0.1A
    • No turn on/off POP and engine noise
    • No EMI interfering to other electronics equipment
    • Chrome RCA jack, block type terminals, box typepotentiometer
    • Wide operation voltage (10.0 to 16.5V)
    • Digital voltage meter indicates the operation volts(option)
    • Digital signal meter (option)
    • Badge illumination, terminal illumination design (option)
    • High level input (option)
  • Specifications:
    • 100W x 4CH at 4© RMS output
    • 140W x 4CH at 2© RMS output
    • 220W x 4CH at 2© RMS output
    • 280W x 2CH at 4© bridged output
    • 440W x 2CH at 4© bridged output
    • Frequency response: 20 to 20kHz
    • Signal to noise ratio: >95dB
    • Selectable X-over: LPF/FLAT/HPF
    • LPF/HPF filter: 40 to 400Hz
    • Low level input range: 0.2 to 8V
    • Bass boost: 0-9-18dB
    • Amp efficiency: greater than 60%
    • Recommended fuse size: N/A
    • Dimensions: 385 x 200 x 51mm
  • 4CH hi-fi class AB topology
  • Pretty middle size, easy installation
  • High and low pass crossovers
  • Popular cosmetic design
  • Heavy duty heatsink: 8.5kg/m
  • High-end SanKen transistor, 2604 professional pre-amp soundprocess, Japanese brand capacitor
  • Double-sided PCB, SMD parts, SMT process, guarantee morestable/reliable operation
  • Audio precision quality control verification
  • Multi-protection built-in (short, over-heat, overload, DCoffset)
  • Lowest static current, less than 0.1A
  • No turn on/off POP and engine noise
  • No EMI interfering to other electronics equipment
  • Chrome RCA jack, block type terminals, box typepotentiometer
  • Wide operation voltage (10.0 to 16.5V)
  • Digital voltage meter indicates the operation volts(option)
  • Digital signal meter (option)
  • Badge illumination, terminal illumination design (option)
  • High level input (option)
  • 100W x 4CH at 4© RMS output
  • 140W x 4CH at 2© RMS output
  • 220W x 4CH at 2© RMS output
  • 280W x 2CH at 4© bridged output
  • 440W x 2CH at 4© bridged output
  • Frequency response: 20 to 20kHz
  • Signal to noise ratio: >95dB
  • Selectable X-over: LPF/FLAT/HPF
  • LPF/HPF filter: 40 to 400Hz
  • Low level input range: 0.2 to 8V
  • Bass boost: 0-9-18dB
  • Amp efficiency: greater than 60%
  • Recommended fuse size: N/A
  • Dimensions: 385 x 200 x 51mm
