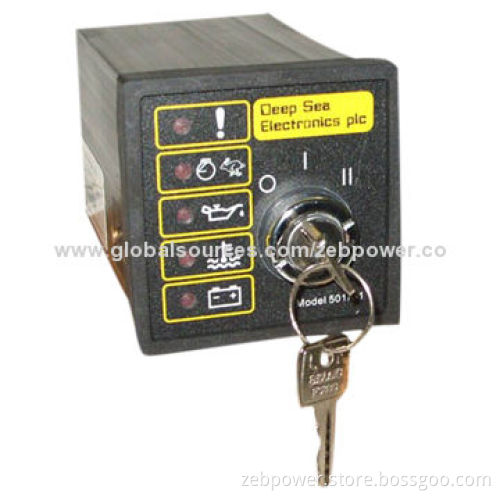

DSE501K, Deepsea controller for generator pannel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Power supply range: 9 to 33 V DC continuous
Cranking dropouts: Able to survive voltage dips during cranking, without the need for internal batteries
Alternator input range: 15-305 V AC RMS
Alternator input frequency: 50-60 Hz at rated engine speed
Magnetic input range: 0.5 V to +/- 80 V
Magnetic input frequency: 2300Hz to 6000 Hz at rated engine speed
Start relay output: 16 Amp DC at supply voltage
Run relay output: 16 Amp DC at supply voltage
Alarm output: 1 Amp DC at supply voltage
Operating temperature range: -30 to +70°C

Power supply range: 9 to 33 V DC continuous

Cranking dropouts: Able to survive voltage dips during cranking, without the need for internal batteries

Alternator input range: 15-305 V AC RMS

Alternator input frequency: 50-60 Hz at rated engine speed

Magnetic input range: 0.5 V to +/- 80 V

Magnetic input frequency: 2300Hz to 6000 Hz at rated engine speed

Start relay output: 16 Amp DC at supply voltage

Run relay output: 16 Amp DC at supply voltage

Alarm output: 1 Amp DC at supply voltage

Operating temperature range: -30 to +70°C
