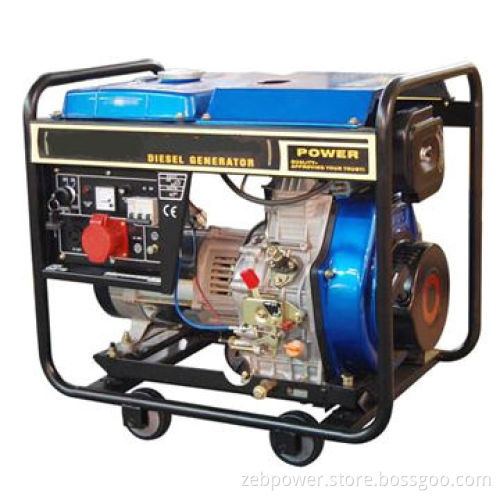

Open-type Portable Diesel Generator with Recoil or Electrical Start and 5.5kVA Power

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

CE and ISO 9001:2000 approved
Low noise
Air-cooled diesel engine
Advanced direct fuel injection system
Rapid starts

Technical data:

Frequency range: 50/60Hz
Output power supply range: 5.5/6.3kVA
Maximum power: 6/7kVA
Voltages: 230/400 for 50 and 240/416V for 60Hz
Current range: 7.6/8.7A
Engine speed: 3,000/3,600r/min
Phase: three
Power factor: 0.8cosÆ
Excitation system: self-excited constant voltage
Noise level (7m): 77dB (A)
Fuel tank capacity: 12.5L
Structure: open-frame
Panel: ordinary
Output: socket two
12V DC output: terminal post
Engine model: ZB186FAE
Bore x stroke: 86 x 72mm
Displacement: 0.418L
Power supply range (kW): 5.7/3,000 for 50 and 6.3/3,600 for 60Hz
Fuel consumption rate (g.kW/hr): 275.1/281.5
Compression ratio: 19
Lubrication system: spring
Engine starting system: electric starter
Diesel oil model: summer: 0# and winter: -10#
Lube oil model: SAE10W-30 (above CD grade)
Lube oil capacity: 1.65L
Battery capacity range: 12V/36Ah
Net weight: 100kg
Dimensions (L x W x H): 760 x 515 x 710mm

CE and ISO 9001:2000 approved

Low noise

Air-cooled diesel engine

Advanced direct fuel injection system

Rapid starts

Frequency range: 50/60Hz

Output power supply range: 5.5/6.3kVA

Maximum power: 6/7kVA

Voltages: 230/400 for 50 and 240/416V for 60Hz

Current range: 7.6/8.7A

Engine speed: 3,000/3,600r/min

Phase: three

Power factor: 0.8cosÆ

Excitation system: self-excited constant voltage

Noise level (7m): 77dB (A)

Fuel tank capacity: 12.5L

Structure: open-frame

Panel: ordinary

Output: socket two

12V DC output: terminal post

Engine model: ZB186FAE

Bore x stroke: 86 x 72mm

Displacement: 0.418L

Power supply range (kW): 5.7/3,000 for 50 and 6.3/3,600 for 60Hz

Fuel consumption rate (g.kW/hr): 275.1/281.5

Compression ratio: 19

Lubrication system: spring

Engine starting system: electric starter

Diesel oil model: summer: 0# and winter: -10#

Lube oil model: SAE10W-30 (above CD grade)

Lube oil capacity: 1.65L

Battery capacity range: 12V/36Ah

Net weight: 100kg

Dimensions (L x W x H): 760 x 515 x 710mm
