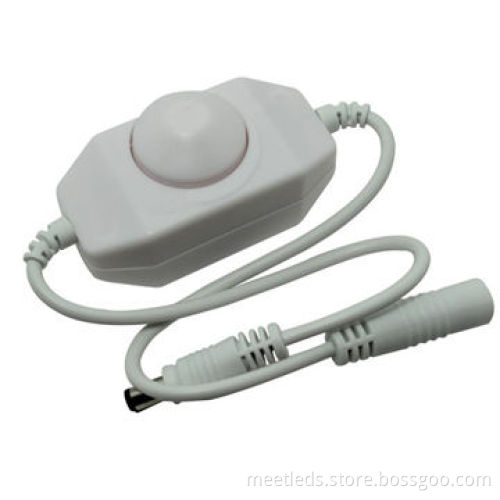

12-24VDC 2amp White LED Dimmer with Rotary Knob

12-24VDC 2amp White LED Dimmer with Rotary Knob

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Model: MT-LDIMMER-1CH-LV
Working temperatures: -20-60℃
Supply voltage: DC5V, 12-24V optional (specify the required voltage on order form)
Output: 1 channel
External dimension: L61ΧW33ΧH32mm
Packing size: L105ΧW65ΧH40mm
Net weight: 30g
Gross weight: 55g
Static power consumption: <1W
Output current: <2A
Power output: 5V<10W, 12V<24W, 24V<48W

Features:

Dimmer is a controller that it can adjust brightness, its control mode is knob-operated control, you could adjust light to the appropriate lighting brightness in accordance with your actual need

Direction for use:

Connect the load wire at first, following by the power wire

Adopt rotary button, its function as follows:

Rotate button to the right, brightness will be brighter, when you rotate it to the far right,the brightness is greatest
Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off

Model: MT-LDIMMER-1CH-LV

Working temperatures: -20-60℃

Supply voltage: DC5V, 12-24V optional (specify the required voltage on order form)

Output: 1 channel

External dimension: L61ΧW33ΧH32mm

Packing size: L105ΧW65ΧH40mm

Net weight: 30g

Gross weight: 55g

Static power consumption: <1W

Output current: <2A

Power output: 5V<10W, 12V<24W, 24V<48W

Dimmer is a controller that it can adjust brightness, its control mode is knob-operated control, you could adjust light to the appropriate lighting brightness in accordance with your actual need

Connect the load wire at first, following by the power wire

Rotate button to the right, brightness will be brighter, when you rotate it to the far right,the brightness is greatest

Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off
