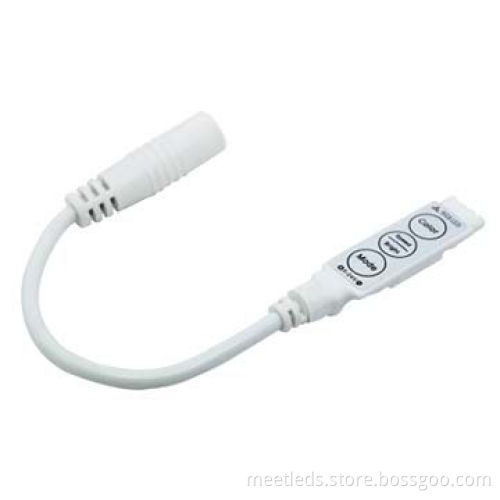

5-24V DC 2Amp Mini Three Keys RGB Controller

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Features

This controller adopts the advanced micro control unit
It is used for controlling a variety of lamp whose source of light is LED
For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on
It has many advantages such as low price, easy connection, simplicity to use and others, etc. According to the customers’ needs
It can realize gradual change, fade-in dimming, jumping change, flicker, quick flash and other varieties of static color lighting effects
It is easy to take, simple to use

Model: MT-TC103

Working temperature: -20-60℃

Supply voltage: DC 5-24V

Output: 3 channels

Connection mode: common anode

Controller dimension: 35.0 x 15.0 x 4.5mm

Packing size: 155.0 x 50.0 x 13.5mm

Net weight: 11g

Gross weight: 15g

Static power: <0.5W

Output current: <2A (each channel)

Output power: 5V < 30W, 12V < 72W, 24V <144W
