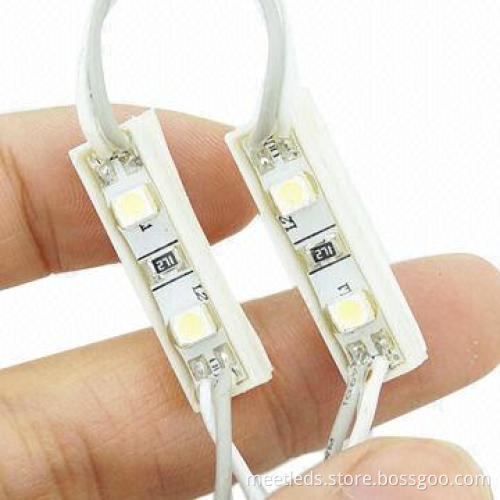

26 * 7mm Two Single Chip SMD3528 Waterproof Resin LED Module for Resin Channel Letter Signage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Features:

Widely use in resin channel letters

Numbers and signage which depth: 4 to 8mm

Adopts 2-piece Epistar single chip SMD3528, 7-8 luminous perchips

Double RF4 fiberglass panels provide a good heatdissipation

10cm gray (positive) and white (negative) wire between everytwo modules

Waterproof class can be reach IP65, can use it outdoor

20-piece per string, each module can be cut individually

Lifespan: 50,000 hours long

Operating voltage: 12V DC

Power consumption: 0.24W/pieces

Dimensions: 26 * 7mm

LED type: Epistar single chip SMD 3528

Number of per meters: 2 LEDs

Luminous flux per meters: 12 to 14lm

CRI: 75Ra

Colors: pure white/nature white/warmwhite/red/green/blue/yellow

Beam angle: 120°

Driven mode: constant voltage

Water resistance: waterproof IP65

Operating temperature: 40 to 70°C

Applications:

Small stroke signage, resin plastic letters, resin metalletters, resin acrylic letters, resin LED channel letters
