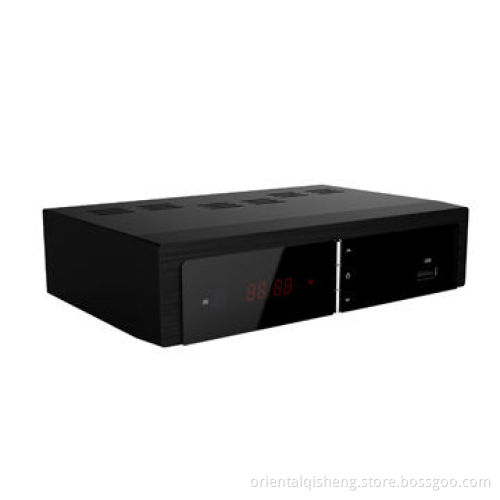

ISDB-T Receiver with Full Seg,Supports HD/SD MPEG2/4, H.264, w/ PVR and Time Shift Function

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Main feature:

Supports ISDB-T broadcast, MPEG-2/MPEG-4 AVC/H.264 HD/SD, DivX
Compatible with 480i/480p/720p/1080i/1080p formats
Auto and manually scan all available TV and radio channels
Aspect ratio 16:9 and 4:3, 1000 channels, parental control
HDMI, YPbPr, RCA, coaxial output
Teletext/bitmap subtitle, compliant with ETS1
Supports 7 day EPG function, VBI Teletext
Supports 6MHz software setting
Auto/manual program search, multiple language supported
USB 2.0 for PVR, TimeShift, software upgrade, multimedia playback
Demodulation: QPSK/16QAM/64QAM/QPSK or DQPSK, OFDM reception
Channel: 13-62
Digital reception covers VHF and HUF band

Tuner:

Input frequency: VHF 7-13Ch (177.143MHz-213.143MHz, UHF 14-69Ch (473.143MHz-803.143MHz)
Input level: 90-5dBm
Bandwidth: 6MHz
Input impedance: 75Ω
Rate: 1/2, 2/3, 3/5, 3/4, 4/5, 5/6, 8/9, and 9/10

Demultiplexer:

Standard: ISO/IEC13818-1, MPEG-4HE AAC
Input maximum bit stream rate: 23.420Mbps

Video decoding:

Standard: ISO/IEC 13818-2, MPEG-2 MP at ML, H.264
Aspect ratio: 4:3, 16:9
Video format: PAL/NTSC/auto
Video resolution: 1080p/1080i/720p/576p/576i(PAL), 1080p/1080i/720p/480p/480i (NTSC)

Audio decoding:

Standard: ISO/IEC 13818-3
Decoding: MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC, MP3
Sampling frequency: 32, 44.1, 48KHz

Processor:

CPU: Mstar MSD7802
Frequency: 550MHz

AV output:

Video de-emphasis: CCIR REC.405-1, 1080p
Video bandwidth: 5.5MHz
Video output impedance: 75Ω
Video output level: 1.0Vp-p
Audio output: coaxial, L/R, HDMI
Audio output frequency: 20Hz-20KHz
Audio output impedance: low
Audio output level: A 1.0Vrms ± 2dB into 10K

Hardware interface:

Indicators: power, signal lock
IR receiver: 38KHz
AV output: YUV, HDMI, composite video
RF input: EC-type IEC169-2 female
Loop through out: IEC-type IEC169-24 male
USB: 1*USB2.0
Power input specification: 90-260V AC 8W maximum

Media file supported:

Picture: JPEG, BMP, PNG
Music: MP3/M4A/AAC/WMA/ASF
Video: MKV, AVI, DIVX, XVID, VOB
MPEG, MPG, MP4, TS, TRP and DAT

Loading:

20’GP/40’GP/40’HQ: 12,000pcs/24,000pcs/29,000pcs

Supports ISDB-T broadcast, MPEG-2/MPEG-4 AVC/H.264 HD/SD, DivX

Compatible with 480i/480p/720p/1080i/1080p formats

Auto and manually scan all available TV and radio channels

Aspect ratio 16:9 and 4:3, 1000 channels, parental control

HDMI, YPbPr, RCA, coaxial output

Teletext/bitmap subtitle, compliant with ETS1

Supports 7 day EPG function, VBI Teletext

Supports 6MHz software setting

Auto/manual program search, multiple language supported

USB 2.0 for PVR, TimeShift, software upgrade, multimedia playback

Demodulation: QPSK/16QAM/64QAM/QPSK or DQPSK, OFDM reception

Channel: 13-62

Digital reception covers VHF and HUF band

Input frequency: VHF 7-13Ch (177.143MHz-213.143MHz, UHF 14-69Ch (473.143MHz-803.143MHz)

Input level: 90-5dBm

Bandwidth: 6MHz

Input impedance: 75Ω

Rate: 1/2, 2/3, 3/5, 3/4, 4/5, 5/6, 8/9, and 9/10

Standard: ISO/IEC13818-1, MPEG-4HE AAC

Input maximum bit stream rate: 23.420Mbps

Standard: ISO/IEC 13818-2, MPEG-2 MP at ML, H.264

Aspect ratio: 4:3, 16:9

Video format: PAL/NTSC/auto

Video resolution: 1080p/1080i/720p/576p/576i(PAL), 1080p/1080i/720p/480p/480i (NTSC)

Standard: ISO/IEC 13818-3

Decoding: MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC, MP3

Sampling frequency: 32, 44.1, 48KHz

CPU: Mstar MSD7802

Frequency: 550MHz

Video de-emphasis: CCIR REC.405-1, 1080p

Video bandwidth: 5.5MHz

Video output impedance: 75Ω

Video output level: 1.0Vp-p

Audio output: coaxial, L/R, HDMI

Audio output frequency: 20Hz-20KHz

Audio output impedance: low

Audio output level: A 1.0Vrms ± 2dB into 10K

Indicators: power, signal lock

IR receiver: 38KHz

AV output: YUV, HDMI, composite video

RF input: EC-type IEC169-2 female

Loop through out: IEC-type IEC169-24 male

USB: 1*USB2.0

Power input specification: 90-260V AC 8W maximum

Picture: JPEG, BMP, PNG

Music: MP3/M4A/AAC/WMA/ASF

Video: MKV, AVI, DIVX, XVID, VOB

MPEG, MPG, MP4, TS, TRP and DAT

20’GP/40’GP/40’HQ: 12,000pcs/24,000pcs/29,000pcs
