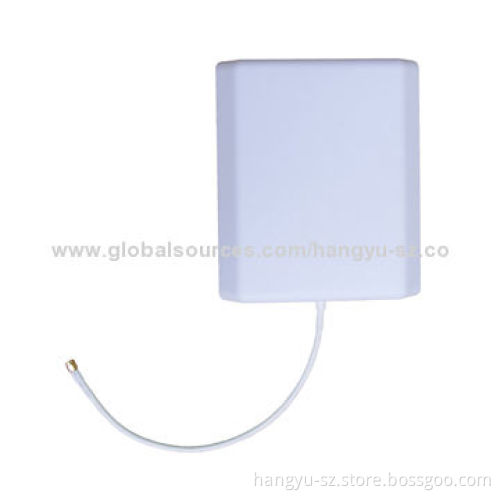

2.3 to 2.7GHz 12dBi Wall Mount Antenna with Low VSWR, Wide Broadband
  • 2.3 to 2.7GHz 12dBi Wall Mount Antenna with Low VSWR, Wide Broadband
2.3 to 2.7GHz 12dBi Wall Mount Antenna with Low VSWR, Wide Broadband

2.3 to 2.7GHz 12dBi Wall Mount Antenna with Low VSWR, Wide Broadband

Get Latest Price
Payment Type:
T/T, Western Union or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union or L/C at Sight
Product Description
Product Description
  • Descriptions:
    • Low VSWR, wide broadband, compact size and light structure which is easy to install
    • Applied to 2.4GHz WLAN Wi-Fi system, MMDS system and wireless bridge
  • Specifications:
    • Electrical:
      • Frequency range: 2,300 to 2,700MHz
      • Bandwidth: 400MHz
      • Gain: 12dBi
      • VSWR: ≤1.5
      • Horizontal beam width: 55
      • Vertical beam width: 32
      • F/B ratio: ≥23dB
      • Nominal impedance: 50
      • Polarization: vertical
      • Maximum power: 50W
      • Connector: SMA male or customized
    • Mechanical:
      • Antenna dimensions: 210 x 180 x 45mm
      • Weight: 0.5kg
      • Pole dimensions: φ40 to 50mm
      • Temperature range: -40 to 60°C
      • Humidity range: 5 to 95% RH
  • Low VSWR, wide broadband, compact size and light structure which is easy to install
  • Applied to 2.4GHz WLAN Wi-Fi system, MMDS system and wireless bridge
  • Electrical:
    • Frequency range: 2,300 to 2,700MHz
    • Bandwidth: 400MHz
    • Gain: 12dBi
    • VSWR: ≤1.5
    • Horizontal beam width: 55
    • Vertical beam width: 32
    • F/B ratio: ≥23dB
    • Nominal impedance: 50
    • Polarization: vertical
    • Maximum power: 50W
    • Connector: SMA male or customized
  • Mechanical:
    • Antenna dimensions: 210 x 180 x 45mm
    • Weight: 0.5kg
    • Pole dimensions: φ40 to 50mm
    • Temperature range: -40 to 60°C
    • Humidity range: 5 to 95% RH
  • Frequency range: 2,300 to 2,700MHz
  • Bandwidth: 400MHz
  • Gain: 12dBi
  • VSWR: ≤1.5
  • Horizontal beam width: 55
  • Vertical beam width: 32
  • F/B ratio: ≥23dB
  • Nominal impedance: 50
  • Polarization: vertical
  • Maximum power: 50W
  • Connector: SMA male or customized
  • Antenna dimensions: 210 x 180 x 45mm
  • Weight: 0.5kg
  • Pole dimensions: φ40 to 50mm
  • Temperature range: -40 to 60°C
  • Humidity range: 5 to 95% RH
