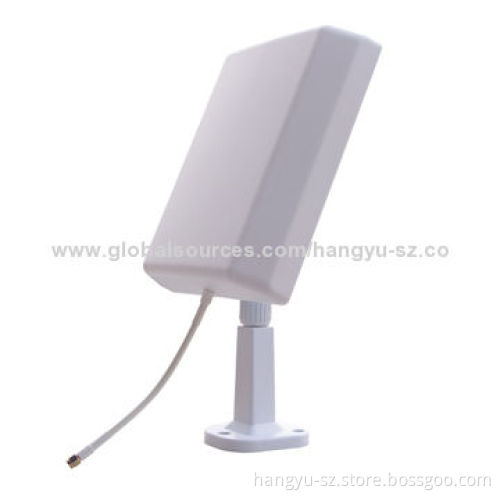

2.3 to 2.7GHz 12dBi Wall-mounted Antenna, Low VSWR, Wide Broadband, Compact Size and Light Structure
  • 2.3 to 2.7GHz 12dBi Wall-mounted Antenna, Low VSWR, Wide Broadband, Compact Size and Light Structure
2.3 to 2.7GHz 12dBi Wall-mounted Antenna, Low VSWR, Wide Broadband, Compact Size and Light Structure

2.3 to 2.7GHz 12dBi Wall-mounted Antenna, Low VSWR, Wide Broadband, Compact Size and Light Structure

Get Latest Price
Payment Type:
T/T, Western Union, L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union, L/C at Sight
Product Description
Product Description
  • Descriptions:
    • Wide broadband, compact size and light structure which is easy-to-install
    • It is applied to 2.4GHz WLAN W-iFi system, MMDS system and wireless bridge
  • Specifications:
    • Frequency range: 2,300 to 2,700MHz
    • Bandwidth: 400MHz
    • Gain: 12dBi
    • VSWR: ≤1.5
    • F/B ratio: ≥23dB
    • Nominal impedance: 50Ω
    • Polarization: vertical
    • Maximum power: 50W
    • Connector: SMA male or customized
    • Dimensions: 210 x 180 x 45mm
    • Weight: 0.4kg
    • Pole dimensions: 40 to 50mm
    • Temperatures: -40 to 60
    • Humidity range: 5 to 95%
  • Wide broadband, compact size and light structure which is easy-to-install
  • It is applied to 2.4GHz WLAN W-iFi system, MMDS system and wireless bridge
  • Frequency range: 2,300 to 2,700MHz
  • Bandwidth: 400MHz
  • Gain: 12dBi
  • VSWR: ≤1.5
  • F/B ratio: ≥23dB
  • Nominal impedance: 50Ω
  • Polarization: vertical
  • Maximum power: 50W
  • Connector: SMA male or customized
  • Dimensions: 210 x 180 x 45mm
  • Weight: 0.4kg
  • Pole dimensions: 40 to 50mm
  • Temperatures: -40 to 60
  • Humidity range: 5 to 95%
