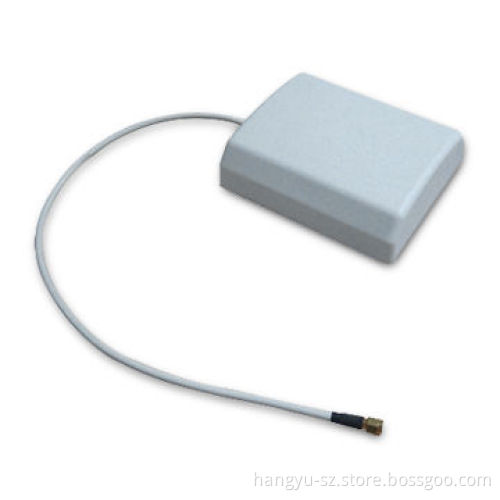

Wall-mounted Antenna with 410 to 440MHz Frequency Range, 5dBi, 50W Maximum Power
  • Wall-mounted Antenna with 410 to 440MHz Frequency Range, 5dBi, 50W Maximum Power
Wall-mounted Antenna with 410 to 440MHz Frequency Range, 5dBi, 50W Maximum Power

Wall-mounted Antenna with 410 to 440MHz Frequency Range, 5dBi, 50W Maximum Power

Get Latest Price
Payment Type:
T/T, Western Union, L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union, L/C at Sight
Product Description
Product Description
  • Applied to base stations, indoor coverage systems
  • Specifications:
    • Electrical:
      • Frequency range: 410 to 440MHz
      • Bandwidth: 30MHz
      • Gain: 5dBi
    • Beam width:
      • Vertical: 55/45°
      • Horizontal: 70/60°
      • VSWR: ≤2.0
      • Nominal impedance: 50Ω
      • Polarization: vertical
      • Maximum power: 50W
      • Connector: N-K
    • Mechanical:
      • Cable: 0.5m
      • Antenna dimensions: 210 x 180 x 47mm
      • Weight: 415g
      • Temperature: -40 to +60°C
      • Humidity: 5 to 95% RH
      • Installation: wall mounting
  • Electrical:
    • Frequency range: 410 to 440MHz
    • Bandwidth: 30MHz
    • Gain: 5dBi
  • Beam width:
    • Vertical: 55/45°
    • Horizontal: 70/60°
    • VSWR: ≤2.0
    • Nominal impedance: 50Ω
    • Polarization: vertical
    • Maximum power: 50W
    • Connector: N-K
  • Mechanical:
    • Cable: 0.5m
    • Antenna dimensions: 210 x 180 x 47mm
    • Weight: 415g
    • Temperature: -40 to +60°C
    • Humidity: 5 to 95% RH
    • Installation: wall mounting
  • Frequency range: 410 to 440MHz
  • Bandwidth: 30MHz
  • Gain: 5dBi
  • Vertical: 55/45°
  • Horizontal: 70/60°
  • VSWR: ≤2.0
  • Nominal impedance: 50Ω
  • Polarization: vertical
  • Maximum power: 50W
  • Connector: N-K
  • Cable: 0.5m
  • Antenna dimensions: 210 x 180 x 47mm
  • Weight: 415g
  • Temperature: -40 to +60°C
  • Humidity: 5 to 95% RH
  • Installation: wall mounting
