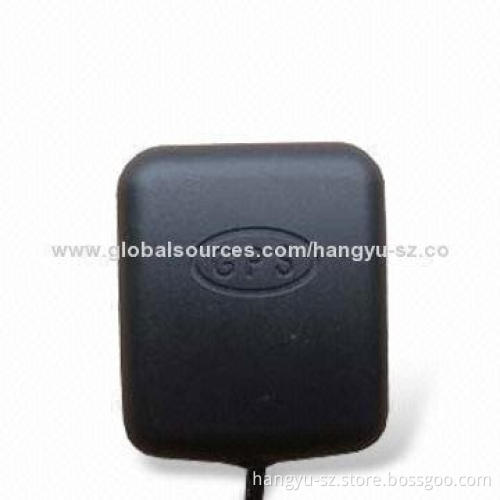

GPS Antenna with 20MHz Bandwidth
  • GPS Antenna with 20MHz Bandwidth
GPS Antenna with 20MHz Bandwidth

GPS Antenna with 20MHz Bandwidth

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Technical data:
    • Center frequency: 1575.42MHz, ±1
    • Output VSWR: 2.0
    • Bandwidth: 20MHz
    • Impedance: 50Ω
    • Polarization: R.H.C.P
    • LNA gain (without cable): 30dB, ±2 type (3.3 to 5V)
    • Noise figure: ≤2dB (maximum)
    • Voltages: 3.3 to 5V DC
    • DC current: 50mA (maximum)
    • Working power: 300mW (minimum) and 1.5W (maximum)
  • Mechanical data:
    • Weight: 73g
    • Size: 46 x 38 x 13mm
    • Cable: RG174 3 meters or 5 meters or others
    • Connector: SMA/SMB/MCX/MMCX or others
    • Mounting: magnetic base
    • Housing: black matte surface
    • Working temperatures: -40 to 85°C
    • Working humidity range: 95 to 100%
    • Weatherproof: IP67
  • Center frequency: 1575.42MHz, ±1
  • Output VSWR: 2.0
  • Bandwidth: 20MHz
  • Impedance: 50Ω
  • Polarization: R.H.C.P
  • LNA gain (without cable): 30dB, ±2 type (3.3 to 5V)
  • Noise figure: ≤2dB (maximum)
  • Voltages: 3.3 to 5V DC
  • DC current: 50mA (maximum)
  • Working power: 300mW (minimum) and 1.5W (maximum)
  • Weight: 73g
  • Size: 46 x 38 x 13mm
  • Cable: RG174 3 meters or 5 meters or others
  • Connector: SMA/SMB/MCX/MMCX or others
  • Mounting: magnetic base
  • Housing: black matte surface
  • Working temperatures: -40 to 85°C
  • Working humidity range: 95 to 100%
  • Weatherproof: IP67
