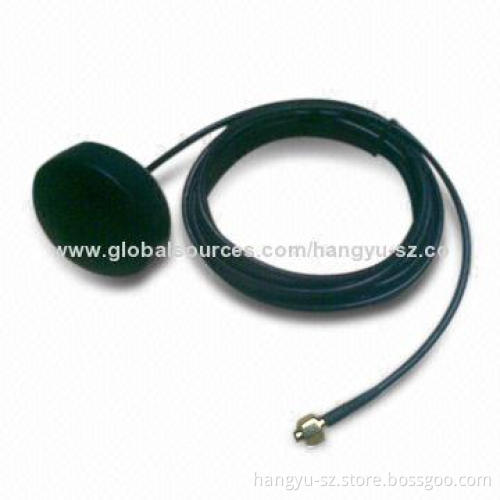

3.3V GPS Active Antenna, Suitable for Screw Mounting Way
  • 3.3V GPS Active Antenna, Suitable for Screw Mounting Way
3.3V GPS Active Antenna, Suitable for Screw Mounting Way

3.3V GPS Active Antenna, Suitable for Screw Mounting Way

Get Latest Price
Payment Type:
PayPal, L/C, Western Union and T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: PayPal, L/C, Western Union and T/T
Product Description
Product Description
  • Technical data:
    • Center frequency: 1,575.42 ±1MHz
    • Output VSWR: <2.0
    • Band width: 20MHz
    • Impedance: 50Ω
    • Polarization: RHCP
    • LNA gain (without cable): 30 ± 2dB type (3.3 to 5V)
    • Noise figure: <2dB (maximum) (at 3.3V)
    • Voltages: 3.3 to 5V DC
    • Current: 50mA DC (maximum)
    • Working power: 300mW (minimum) and 1.5W (maximum)
  • Mechanical data:
    • Weight: 73g
    • Dimensions: 46 x 38 x 13mm
    • Cable: RG174, 3m
    • Connector: SMA male
    • Mounting: magnetic base
    • Housing: black matte surface
    • Working temperatures: -40 to 85 degrees
    • Humidity range: 95 to 100%
    • Weatherproof: IP67
  • Center frequency: 1,575.42 ±1MHz
  • Output VSWR: <2.0
  • Band width: 20MHz
  • Impedance: 50Ω
  • Polarization: RHCP
  • LNA gain (without cable): 30 ± 2dB type (3.3 to 5V)
  • Noise figure: <2dB (maximum) (at 3.3V)
  • Voltages: 3.3 to 5V DC
  • Current: 50mA DC (maximum)
  • Working power: 300mW (minimum) and 1.5W (maximum)
  • Weight: 73g
  • Dimensions: 46 x 38 x 13mm
  • Cable: RG174, 3m
  • Connector: SMA male
  • Mounting: magnetic base
  • Housing: black matte surface
  • Working temperatures: -40 to 85 degrees
  • Humidity range: 95 to 100%
  • Weatherproof: IP67
