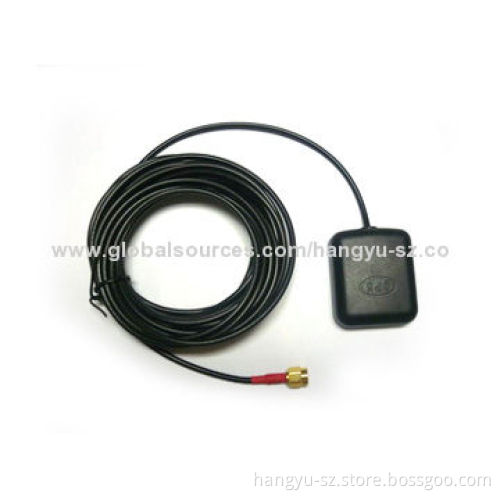

GPS Antenna with 20MHz Bandwidth, 3.3 to 5V DC Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, Western Union, L/C at Sight

Product Description

Technical data:

Mechanical data:

Environmental parameters:

Center frequency: 1575.42 ± 1MHz

Output VSWR: 2.0

Bandwidth: 20MHz

Impedance: 50Ω

Polarization: RHCP

LNA gain (without cable): 30 ± 2dB type (3.3 to 5V)

Noise figure: <2dB (maximum) (at 3.3V)

DC voltage: 3.3 to 5V

DC current: 50mA (maximum)

Working power: 300mW (minimum) and 1.5W (maximum)

Weight: 73g

Size: 46 x 38 x 13mm

Cable: RG174 3/5m or others

Connectors: SMA/SMB/MCX/MMCX or others

Mounting: adsorption equation

Housing: black matte surface

Working temperature range: -40 to 85°C

Humidity range: 95 to 100% RH

Weatherproof rating: IP67
