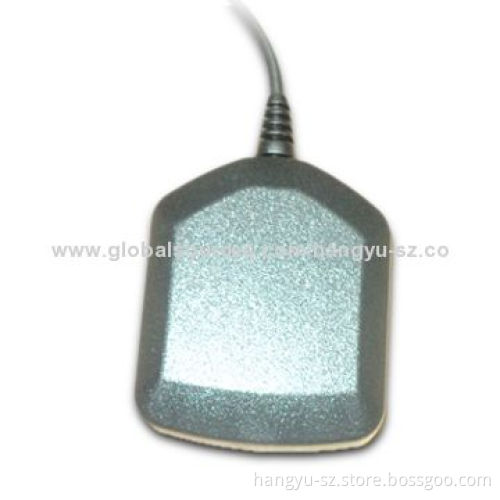

GPS Antenna with 20MHz Band Width and 3.3 to 5V DC Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, L/C, Western Union or T/T

Product Description

Specifications:

Mechanical data:

Center frequency: 1575.42 ±1MHz

Output VSWR: 2.0

Band width: 20MHz

Impedance: 50Ω

Polarization: R, H, C, P

LAN gain (without cable): 30 ±2dB type (3.3 to 5V)

Noise figure: <2dB (at 3.3V) (maximum)

Voltage: 3.3 to 5V DC

DC current: 50mA (maximum)

Working power:

Minimum: 300mW

Maximum: 1.5W

Weight: 73g

Dimensions: 48 x 36 x 13mm

Cable: RG174 3m or 5m or others

Connector: SMA/SMB/MCX and MMCX or others

Mounting: magnetic base

Housing: black matte surface

Working temperature: -40 to 85°C

Humidity range: 95 to 100

Weatherproof: IP67
