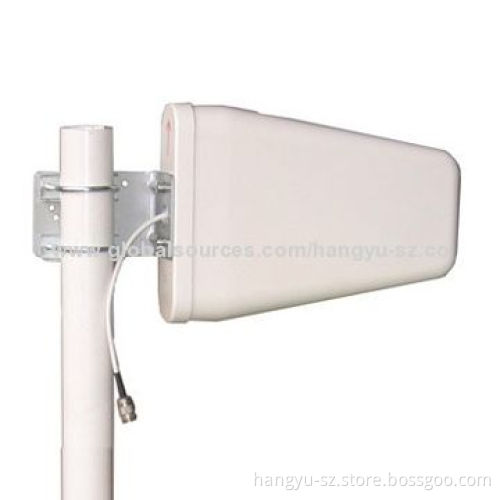

LPDA Antenna with N-female Connector, 806 to 960/1,710 to 2,500MHz Frequency Range, 7/9dBi Gain

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, L/C at Sight or PayPal

Product Description

Features:

Frequency range: 806 to 960/1,710 to 2,500MHz
VSWR: less than 1.5
Gain: 7 or 9dBi
Beam width:
Vertical: 40 or 50
Horizontal: 50 or 65°
Polarization: vertical or horizontal
Impedance: 50 Ohms
Maximum power: 50W
Lightning protection DC ground
Connector: N to K
Installation: poles 40 to 50mm
Operating temperatures: -30 to 85°C
Suitable for base stations, indoor coverage systems, GSM, CDMA, PCS, 3G and WLAN systems
Dimensions: 295 x 210 x 64mm
Net weight: 723g
