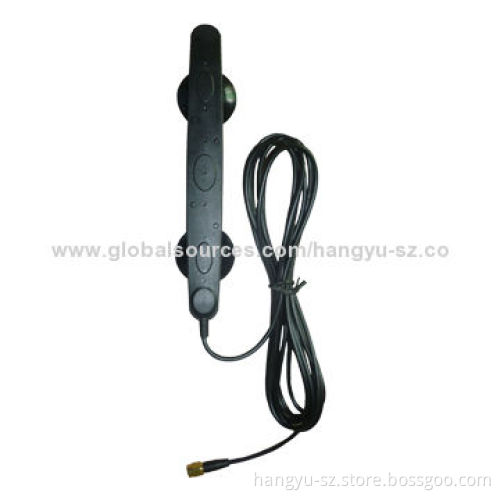

Patch Antenna with 890-960/1,710-1,990MHz Frequency Range and 2dBi Gain
  • Patch Antenna with 890-960/1,710-1,990MHz Frequency Range and 2dBi Gain
Patch Antenna with 890-960/1,710-1,990MHz Frequency Range and 2dBi Gain

Patch Antenna with 890-960/1,710-1,990MHz Frequency Range and 2dBi Gain

Get Latest Price
Payment Type:
T/T, Western Union, L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union, L/C at Sight
Product Description
Product Description
  • It is compact structure and nice design, patched by vacuum cups, which is applied to car security
  • Electrical specifications:
    • Frequency range: 890 to 960/1,710 to 1,990MHz
    • Bandwidth: 70/280MHz
    • Gain: 2.0dBi
    • VSWR: ≤2.0
    • Nominal impedance: 50Ω
    • Polarization: vertical
    • Maximum power: 50W
    • Connector: SMA-J
  • Mechanical specifications:
    • Cable: 2m
    • Antenna dimensions: 165 x 20 x 24mm
    • Weight: 59g
    • Installation: vacuum cups
    • Temperature range: -40 to 60°C
    • Humidity range: 5 to 95%
  • Frequency range: 890 to 960/1,710 to 1,990MHz
  • Bandwidth: 70/280MHz
  • Gain: 2.0dBi
  • VSWR: ≤2.0
  • Nominal impedance: 50Ω
  • Polarization: vertical
  • Maximum power: 50W
  • Connector: SMA-J
  • Cable: 2m
  • Antenna dimensions: 165 x 20 x 24mm
  • Weight: 59g
  • Installation: vacuum cups
  • Temperature range: -40 to 60°C
  • Humidity range: 5 to 95%
