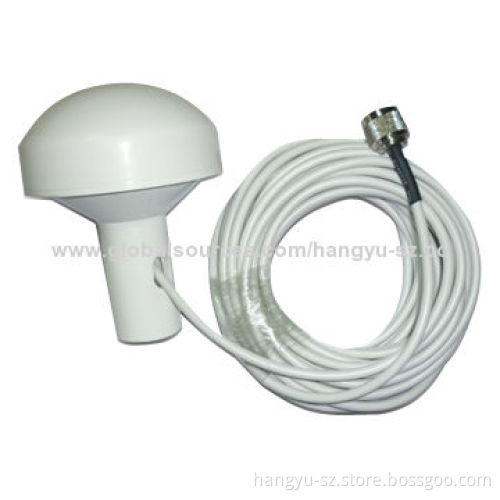

32dBi GPS Marine Antenna with 3, 5, 3 to 5V DC Voltages

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or L/C at Sight

Product Description

Center frequency: 1,575.42 ±3MHz

VSWR: 1.5:1

Bandwidth: ±5MHz

Impedance: 50Ω

Peaking (high): 3dB IC based on 7 x 7cm ground plane

Gain range: -4dB IC at -90 to 90° (over 75% volume)

Polarization: RHCP

Amplifier gain: 28, 45 and 55dB (typical)

Noise figure: 1.5dB

Filter out of band attenuation (f0 = 1,575.42MHz)

7dB-in f0 ±20MHz

20dB-in f0 ±50MHz

30dB-in f0 ±100MHz

Sensitivity: 32dBi

Output voltage VSWR: 2.0

Voltages: 3, 5, 3 to 5V DC

DC current: 5, 10 and 22mA (maximum)

Weight: 140g

Dimensions (Ø): 96 x 126mm

Cable (RG-58): 10 meters

Connector types: SMA, SMB, SMC, BNC, FME, TNC, MCX and MMCX

Fixed form threaded (M24 x 1.5) connect

House color: white

Working temperature range: -40 to 85°C

Vibration sine sweep 1g (0-p) 10 to 50 to 10Hz each axis

Humidity range: 95 to 100%

Waterproof rate: 100%
