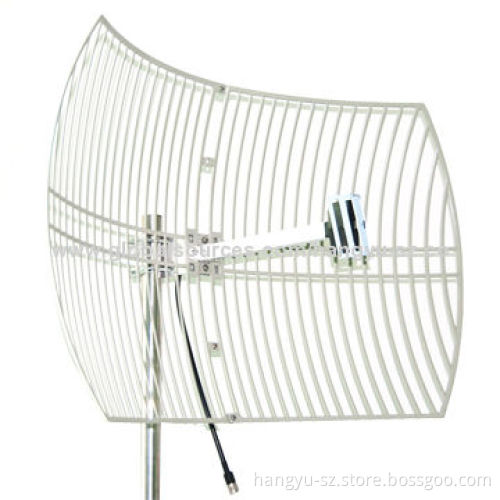

2.5 to 2.7GHz 19dBi Parabolic Antenna, Superior Performance for Long Distance, 200MHz Bandwidth
  • 2.5 to 2.7GHz 19dBi Parabolic Antenna, Superior Performance for Long Distance, 200MHz Bandwidth
2.5 to 2.7GHz 19dBi Parabolic Antenna, Superior Performance for Long Distance, 200MHz Bandwidth

2.5 to 2.7GHz 19dBi Parabolic Antenna, Superior Performance for Long Distance, 200MHz Bandwidth

Get Latest Price
Payment Type:
T/T, PayPal, Western Union, L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal, Western Union, L/C at Sight
Product Description
Product Description
  • Specifications:
    • Electrical:
      • Frequency range: 2,500 to 2,700MHz, 2.5 to 2.7GHz
      • Bandwidth: 200MHz
      • Gain: 19dBi
      • VSWR: ≤1.5
      • Beam width:
        • Horizontal: 9°
        • Vertical: 13°
      • F/B ratio: ≥25dB
      • Nominal impedance: 50Ω
      • Polarization: vertical or horizontal
      • Maximum power: 100W
      • Connector: N female
    • Mechanical:
      • Antenna dimensions: 900 x 600mm
      • Weight: 2.4kg
      • Pole dimensions: 40 to 50mm
      • Temperature range: -40 to 60°C
      • Humidity range: 5 to 95% RH
  • Electrical:
    • Frequency range: 2,500 to 2,700MHz, 2.5 to 2.7GHz
    • Bandwidth: 200MHz
    • Gain: 19dBi
    • VSWR: ≤1.5
    • Beam width:
      • Horizontal: 9°
      • Vertical: 13°
    • F/B ratio: ≥25dB
    • Nominal impedance: 50Ω
    • Polarization: vertical or horizontal
    • Maximum power: 100W
    • Connector: N female
  • Mechanical:
    • Antenna dimensions: 900 x 600mm
    • Weight: 2.4kg
    • Pole dimensions: 40 to 50mm
    • Temperature range: -40 to 60°C
    • Humidity range: 5 to 95% RH
  • Frequency range: 2,500 to 2,700MHz, 2.5 to 2.7GHz
  • Bandwidth: 200MHz
  • Gain: 19dBi
  • VSWR: ≤1.5
  • Beam width:
    • Horizontal: 9°
    • Vertical: 13°
  • F/B ratio: ≥25dB
  • Nominal impedance: 50Ω
  • Polarization: vertical or horizontal
  • Maximum power: 100W
  • Connector: N female
  • Horizontal: 9°
  • Vertical: 13°
  • Antenna dimensions: 900 x 600mm
  • Weight: 2.4kg
  • Pole dimensions: 40 to 50mm
  • Temperature range: -40 to 60°C
  • Humidity range: 5 to 95% RH
