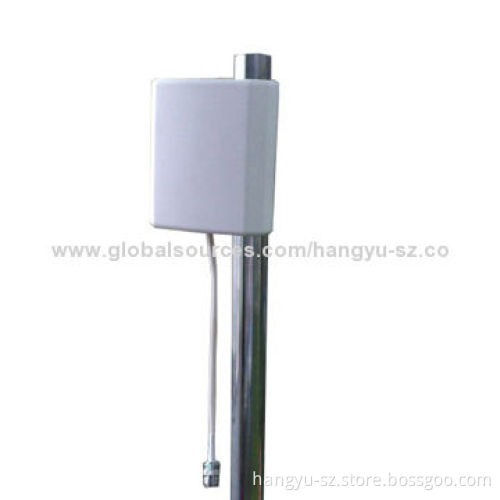

2.3 to 2.7GHz 10dBi Wall-mounted Antenna, Low-VSWR, Broad Bandwidth, Compact Size
  • 2.3 to 2.7GHz 10dBi Wall-mounted Antenna, Low-VSWR, Broad Bandwidth, Compact Size
2.3 to 2.7GHz 10dBi Wall-mounted Antenna, Low-VSWR, Broad Bandwidth, Compact Size

2.3 to 2.7GHz 10dBi Wall-mounted Antenna, Low-VSWR, Broad Bandwidth, Compact Size

Get Latest Price
Payment Type:
T/T, Western Union, L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union, L/C at Sight
Product Description
Product Description
  • Electrical:
    • Frequency range: 2,300 to 2,700MHz
    • Bandwidth: 400MHz
    • Gain: 10dBi
    • VSWR: ≤1.5
    • Horizontal beam width: 60°
    • Vertical beam width: 45°
    • F/B ratio: ≥18dB
    • Nominal impedance: 50Ω
    • Polarization: vertical
    • Maximum power: 50W
    • Connector: N-K or customized
  • Mechanical:
    • Antenna dimensions: 140 x 120 x 38mm
    • Weight: 0.25kg
    • Pole dimension: Ø40 to 50mm
    • Temperatures: -40 to 60°C
    • Humidity range: 5 to 95%
  • Frequency range: 2,300 to 2,700MHz
  • Bandwidth: 400MHz
  • Gain: 10dBi
  • VSWR: ≤1.5
  • Horizontal beam width: 60°
  • Vertical beam width: 45°
  • F/B ratio: ≥18dB
  • Nominal impedance: 50Ω
  • Polarization: vertical
  • Maximum power: 50W
  • Connector: N-K or customized
  • Antenna dimensions: 140 x 120 x 38mm
  • Weight: 0.25kg
  • Pole dimension: Ø40 to 50mm
  • Temperatures: -40 to 60°C
  • Humidity range: 5 to 95%
