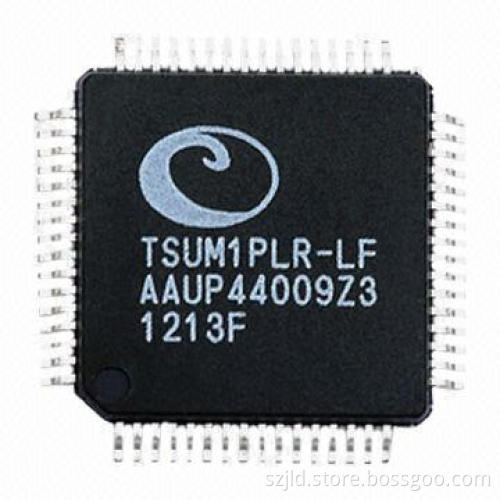

WXGA Ultra Low Power LCD Controller with Analog Interface

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or B/L

Product Description

On-screen display controller (OSD):

Output display interface:

Supports up to 8-bit LVDS WXGA + /SXGA + (1,440 x 900/1,400 x 1,050) panel interface
Spread spectrum output frequency for EMI suppression
PWM backlight intensity control

DPMS supports:

Embedded MCU:

External connection/component:

Miscellaneous:

Built-in OSD generator with 512 character font programmable RAM

OSD programmable font height

Internal OSD rotation: 90 and 270°

Supports 2/4/8 multicolor fonts

Supports 256 color palette

Supports 1k code attributes

Gradient color function

Pattern generator for production test

Supports OSD MUX and alpha blending capability

Supports OSD gradient engine

Supports up to 8-bit LVDS WXGA + /SXGA + (1,440 x 900/1,400 x 1,050) panel interface

Spread spectrum output frequency for EMI suppression

PWM backlight intensity control

Full green mode DPMS supports

Low standby current (>5mA)

8,032 micro controller

ISP interface

UART interface

GPIO/PWM for system control

Built-in DDC circuit

DDC2B/2Bi/2B + /CI supports

Supports external serial flash

Advance power management controller

64-LQFP package

3.3V suppliers with embedded 1.2V internal regulator
