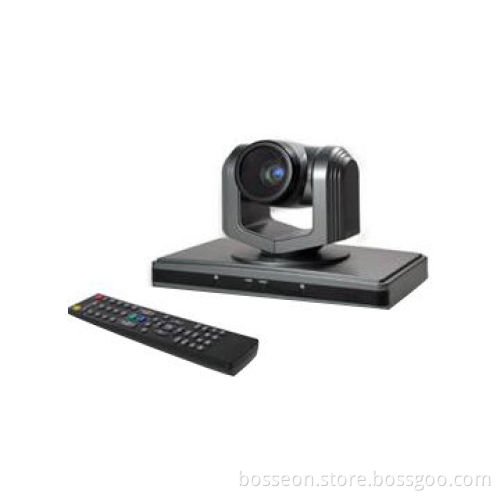

3X Optical Zoom 3.27 Megapixels PTZ HD Camera

3X Optical Zoom 3.27 Megapixels PTZ HD Camera

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Main features:

3X optical x 12 digital zooms
3.27 megapixels
Focus:
- f = 3-9mm
- F = 1.2-2.2mm
Horizontal viewaing angle: 90°
USB 3.0 video output
VISCA, Pelco-D PTZ control protocol
IR remote controller

Specifications:

Image sensor: 1/2.8'' type CMOS
Effective pixel: 3.27 megapixels
Minimum illumination: 0.25 lux at F1.2
White balance: auto/manual/indoor/outdoor
Signal-to-noise ratio: >50dB
Iris: auto/manual
Shutter speed: 1/1-1/10,000s, 22 steps
Horizontal viewing angle: 1080i, 90-30° and 720p, 60-21°
Video output: USB 3.0 interface
Signal system: YUY2, 1920x1080 pixels at 30fps, 1280x 720 pixels at 30fps
Control terminal: EIA/RS232C, EIA/RS485 (bidirectional)
Control protocol: VISCA and Pelco-D
Baud rate: 9600/38400bps
Patrol line: 4 cruise sequence
Preset position: 64 preset positions
Speed match: pan/tilt movement speed depends on camera module zoom in/out
OSD menu: access to OSD menu and adjust camera module parameters
Image auto flp: supports horizontal/vertical image flip
Pan movement speed: 1-200°/second
Tilt movement speed: 1-150°/second
Pan movement range:
- Pan: 0-355°
Tilt movement range:
- Up: 45°
- Down: 45°
Pan scanning automatically: supports pan scanning automatically
Boundary scanning: 0-359° scanning (programmable)
Remote controller: IR wireless remote controller P/T/Z
Power supply: 12V DC, 2A
Working temperature: 0 to 50°C
Humidity: 0-95% RH
Size: 250 x 140 x 145mm
Weight: 2.6kg

3X optical x 12 digital zooms

3.27 megapixels

Focus:

f = 3-9mm
F = 1.2-2.2mm

Horizontal viewaing angle: 90°

USB 3.0 video output

VISCA, Pelco-D PTZ control protocol

IR remote controller

f = 3-9mm

F = 1.2-2.2mm

Image sensor: 1/2.8'' type CMOS

Effective pixel: 3.27 megapixels

Minimum illumination: 0.25 lux at F1.2

White balance: auto/manual/indoor/outdoor

Signal-to-noise ratio: >50dB

Iris: auto/manual

Shutter speed: 1/1-1/10,000s, 22 steps

Horizontal viewing angle: 1080i, 90-30° and 720p, 60-21°

Video output: USB 3.0 interface

Signal system: YUY2, 1920x1080 pixels at 30fps, 1280x 720 pixels at 30fps

Control terminal: EIA/RS232C, EIA/RS485 (bidirectional)

Control protocol: VISCA and Pelco-D

Baud rate: 9600/38400bps

Patrol line: 4 cruise sequence

Preset position: 64 preset positions

Speed match: pan/tilt movement speed depends on camera module zoom in/out

OSD menu: access to OSD menu and adjust camera module parameters

Image auto flp: supports horizontal/vertical image flip

Pan movement speed: 1-200°/second

Tilt movement speed: 1-150°/second

Pan movement range:

Pan: 0-355°

Tilt movement range:

Up: 45°
Down: 45°

Pan scanning automatically: supports pan scanning automatically

Boundary scanning: 0-359° scanning (programmable)

Remote controller: IR wireless remote controller P/T/Z

Power supply: 12V DC, 2A

Working temperature: 0 to 50°C

Humidity: 0-95% RH

Size: 250 x 140 x 145mm

Weight: 2.6kg

Pan: 0-355°

Up: 45°

Down: 45°
