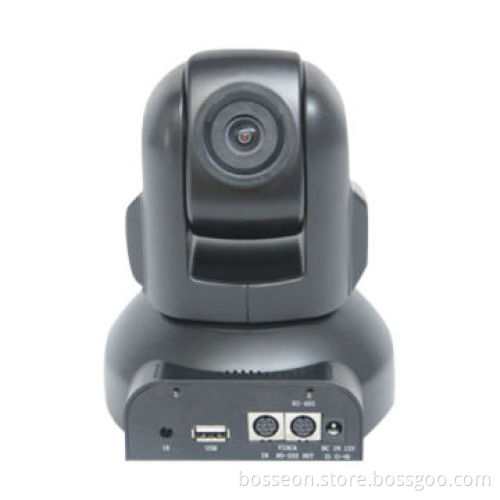

CMOS Sensor 2Mage Pixel 3x Optical Zoom Video Conference Free Driver USB Web Camera

CMOS Sensor 2Mage Pixel 3x Optical Zoom Video Conference Free Driver USB Web Camera

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Main features:

3 optical x 3 digital zoom
2.1 megapixels
USB2.0 video output
VISCA, PELCO-D control protocol
IR remote control

Specifications:

Image sensor: 1/2.7″ HD color CMOS
Signal system: PAL/NTSC
Minimum scene illumination: 0.5lux at F2.0
White balance: auto/manual
Gain control: auto
Back-light compensation: on/off
S/N ratio: >50dB
Lens: f=5-15mm, F=1.6
Iris: auto/manual
Zoom: fixed lens
Hov: 19-41°
Video output: USB interface
Video formats: MJPG/1080P29, 720P at 30, YUY2/1080P at 5, 720P at 9
Control decoders: EIA/RS-485, USB
Communication: EIA/RS-232 (bidirectional)
PTZ control protocols: VISCA, PELCO-D
Baud rates: 9,600/38,400bps
Patrol tours: 4
Preset: 64
Save status after power off: supported
Speed matching function: supported
Image auto flip: support
Pan speed range: 0-280°/s
Tilt speed range: 0-100°/s
Pan rotation angle: 360°
Tilt rotation angles: +90°, -45°
Auto pan scan: supported
Boundary scan range: 0-359° (programmable)
Remoter control: IR wireless remote control P/T/Z
Power: DC 12V ±10% 1.2A
Operating temperatures: 0-50℃
Environmental humidity range: 0-95%RH (non-condensation)
Length x width x high: 124 x 120 x 145mm/220 x 175 x 220mm (net/package)
Weight range: 640/1,100g (net/package)

3 optical x 3 digital zoom

2.1 megapixels

USB2.0 video output

VISCA, PELCO-D control protocol

IR remote control

Image sensor: 1/2.7″ HD color CMOS

Signal system: PAL/NTSC

Minimum scene illumination: 0.5lux at F2.0

White balance: auto/manual

Gain control: auto

Back-light compensation: on/off

S/N ratio: >50dB

Lens: f=5-15mm, F=1.6

Iris: auto/manual

Zoom: fixed lens

Hov: 19-41°

Video output: USB interface

Video formats: MJPG/1080P29, 720P at 30, YUY2/1080P at 5, 720P at 9

Control decoders: EIA/RS-485, USB

Communication: EIA/RS-232 (bidirectional)

PTZ control protocols: VISCA, PELCO-D

Baud rates: 9,600/38,400bps

Patrol tours: 4

Preset: 64

Save status after power off: supported

Speed matching function: supported

Image auto flip: support

Pan speed range: 0-280°/s

Tilt speed range: 0-100°/s

Pan rotation angle: 360°

Tilt rotation angles: +90°, -45°

Auto pan scan: supported

Boundary scan range: 0-359° (programmable)

Remoter control: IR wireless remote control P/T/Z

Power: DC 12V ±10% 1.2A

Operating temperatures: 0-50℃

Environmental humidity range: 0-95%RH (non-condensation)

Length x width x high: 124 x 120 x 145mm/220 x 175 x 220mm (net/package)

Weight range: 640/1,100g (net/package)
