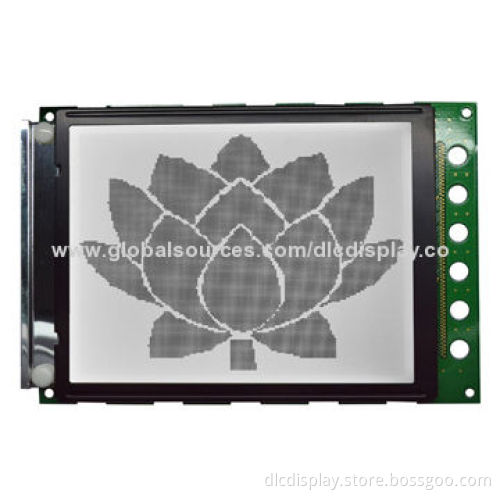

FSTN LCD Display Module with Transflective Positive LCD Display Panel, 1/240 Duty and 1/16 Bias

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Cash in Advance (CID

Product Description

Composed of a LCD panel, driver ICs, touch panel and a backlight unit

LCD type: FSTN

Polarizer type: transflective/positive

Viewing direction: 6:00

Interface: 4-line serial

Number of dots/characters: 320 x 240

Dot size (W x H): 0.20 x 0.20mm

Dot pitch (W x H): 0.22 x 0.22mm

Active area: 70.38 x 52.78mm

Outline dimension (W x H x D): 96.4 x 78.2 x 8.3mm

LCD controller and driver: IST3088

LCD driving method: 1/240 duty, 1/16 bias

Backlight type: LED

Backlight color: white

Operating temperatures: -20 to 70°C

Storage temperatures: -30 to 80°C
