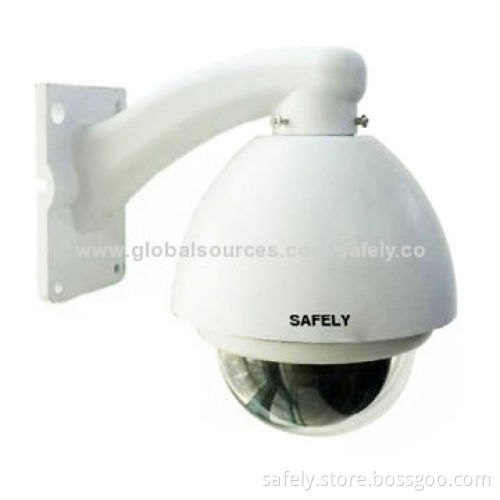

High-speed Dome Camera

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Use high-quality components, high and minute subset into TV, long lifespan conductive slip ring, high-quality belts, stable operating, high-reliability

Stable running, none dithering under any speed

Cover use high-intension aluminum material, with defend impact, shielding and heat-dissipation functions, defend levels reach to IP66

Internal setting data not lose when electronic cut

Triple lightning protection technology, effectively raising the speed dome mine and anti-jamming capability

Specifications:

SD-KeM39-10/W
Image sensor: 1/4-inch Sony effio-s
Signal model: PAL/NTSC
Horizontal resolution: 700TVL
Effective pixel:
- PAL (H x V): 752X582
- NTSC (H x V): 768X494
Minimum illumination: 0 Lux (with IR), color to B/W with IR-cut function
S/N radio: ≥52dB (enhanced)
Backlight compensation: on/off
White balance: auto
Electronic shutter: 1/50-1/12,000 seconds
Focus length: 3.8-38.0mm
Optical focus: 10X optical zoom
Focus: auto/manual, take high-performance DSP to realise complete digital and ultra-high speed focus function
Preset: 256
Patrol track: 4 groups, each can record 200 actions
Cruise track: 8 groups, every group have 30 presets can join cruise, can setting the presets residence time
Other scan: 4 groups, supports horizontal scan, deuce area scan, scan random
Rotation range: horizontal 360° unlimited rotation, vertical 90°, auto reversal
Rotation speed: horizontal and vertical minimum 0.01°, maximum 300°/second
Communications: RS-485, PELCO D, PELCO P
OSD: full-screen Chinese/English menu
Special functions: AWB, MASK, DNR
Power supply: 12V DC/2A
Materials: aluminum shell, waterproof IP66
Working environment: -20-+50℃
