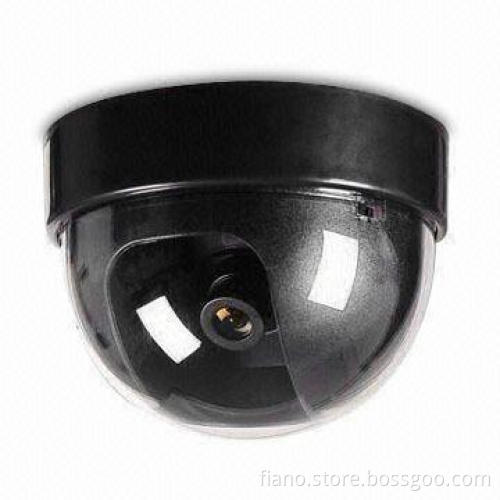

Dome Camera with 1/3-inch Sharp Color CCD (Surveillance Security Outdoor CCTV Equipment)
  • Dome Camera with 1/3-inch Sharp Color CCD (Surveillance Security Outdoor CCTV Equipment)
Dome Camera with 1/3-inch Sharp Color CCD (Surveillance Security Outdoor CCTV Equipment)

Dome Camera with 1/3-inch Sharp Color CCD (Surveillance Security Outdoor CCTV Equipment)

Get Latest Price
Payment Type:
Western Union, PayPal, T/T, MoneyGram or Cash
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Western Union, PayPal, T/T, MoneyGram or Cash
Product Description
Product Description
  • Specifications:
    • Image device: 1/3-inch Sharp color CCD
    • Horizontal resolution: 380TV lines
    • Effective pixels:
      • NTSC (H x V): 510 x 492
      • PAL (H x V): 500 x 582
    • Usable illumination: 1.0 Lux (F: 2.0)
    • S/N ratio: >48dB (AGC off)
    • Electronic shutter speed: auto
    • NTSC: 1/60 to 1/100,000 seconds
    • PAL: 1/50 to 1/100,000 seconds
    • 3.6mm board lens
    • Video output: 1.0Vp-p, 75Ω
    • Gain control: auto
    • White balance: auto
    • Synchronization system: internal
    • BLC: auto
    • Power supply: 12V DC, 150mA
    • Operating temperature: -10 to 50°C
    • Operating humidity: 95% RH (maximum)
    • Storage temperature: -20 to 60°C
    • Storage humidity: 95% RH (maximum)
    • Dimensions (R x H): 88 x 65mm
    • Weight: 190g
  • Image device: 1/3-inch Sharp color CCD
  • Horizontal resolution: 380TV lines
  • Effective pixels:
    • NTSC (H x V): 510 x 492
    • PAL (H x V): 500 x 582
  • Usable illumination: 1.0 Lux (F: 2.0)
  • S/N ratio: >48dB (AGC off)
  • Electronic shutter speed: auto
  • NTSC: 1/60 to 1/100,000 seconds
  • PAL: 1/50 to 1/100,000 seconds
  • 3.6mm board lens
  • Video output: 1.0Vp-p, 75Ω
  • Gain control: auto
  • White balance: auto
  • Synchronization system: internal
  • BLC: auto
  • Power supply: 12V DC, 150mA
  • Operating temperature: -10 to 50°C
  • Operating humidity: 95% RH (maximum)
  • Storage temperature: -20 to 60°C
  • Storage humidity: 95% RH (maximum)
  • Dimensions (R x H): 88 x 65mm
  • Weight: 190g
  • NTSC (H x V): 510 x 492
  • PAL (H x V): 500 x 582
