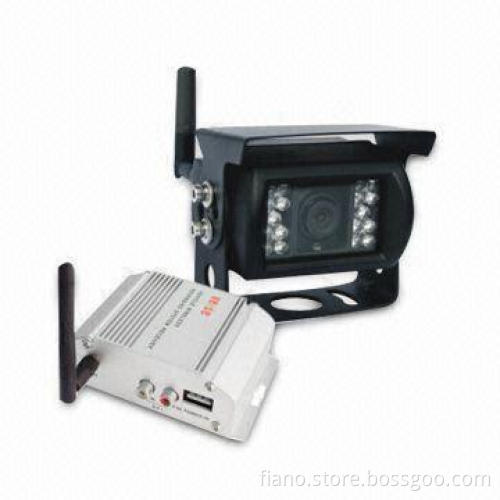

Wireless CCTV Digital CCD Camera with AV Wireless Transmission, Minimum 100m Distance Without Block

Get Latest Price

Payment Type:: Western Union, PayPal, T/T, MoneyGram or Cash

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Western Union, PayPal, T/T, MoneyGram or Cash

Product Description

Features:

CCTV signal transmit no need complex connect-wire layout, adopt wireless transmission is easy to install
Choose manual or auto sequential switching between 2 wireless cameras for controlled box
Additional RCA outputs for audio/video equipment
The camera alloyed shell and water-proof designed for outdoor usage
High-resolution image and wide field of view CCD camera built in IR LED night vision function
Wireless transmission color CCD camera
Image device: 1/3-inch Sharp color CCD
Horizontal resolution: 420TVL
Usable illumination: 0 Lux (built-in 18 IR LED day/night function)
Camera alloyed shell
Weather-resistant for outdoors usage
Frequency: 2,400 to 2,483MHz, 4-channel
Transmission power:
- CE: 10mW
- FCC: 2mW
Modulation mode: FM
Bandwidth: 18MHz
AV wireless transmission distance minimum 100m without block
Power supply: 12V/300mA
Operating temperature: -10 to +50°C
Storage temperature: -20 to +60°C
Dimensions (W x D x H): 75 x 45 x 75mm
Weight: 300g

Wireless receiver switching box:

Receiving frequency: 2,400 to 2,483MHz, 4-channel
Demodulation type: FM
Intermediate frequency: 480MHz
Frequency stabilization: ±100ppm
Local leakage at RF input terminal: ≤55dBm
Receiving sensitivity: ≤85dBm
Video output: 1.0Vp-p, 75Ω
Audio output signal impedance: 600Ω
Audio output signal level: 1.25V ±0.25Vp-p/1kHz
Audio output frequency range: 250Hz to 10kHz
Left subcarrier frequency: 6.5MHz

Electrical and hardware accessories:

Two-meter electrical cables
Camera rotates 360 degrees mount
Two-power supply adapters
User's manual

CCTV signal transmit no need complex connect-wire layout, adopt wireless transmission is easy to install

Choose manual or auto sequential switching between 2 wireless cameras for controlled box

Additional RCA outputs for audio/video equipment

The camera alloyed shell and water-proof designed for outdoor usage

High-resolution image and wide field of view CCD camera built in IR LED night vision function

Wireless transmission color CCD camera

Image device: 1/3-inch Sharp color CCD

Horizontal resolution: 420TVL

Usable illumination: 0 Lux (built-in 18 IR LED day/night function)

Camera alloyed shell

Weather-resistant for outdoors usage

Frequency: 2,400 to 2,483MHz, 4-channel

Transmission power:

CE: 10mW
FCC: 2mW

Modulation mode: FM

Bandwidth: 18MHz

AV wireless transmission distance minimum 100m without block

Power supply: 12V/300mA

Operating temperature: -10 to +50°C

Storage temperature: -20 to +60°C

Dimensions (W x D x H): 75 x 45 x 75mm

Weight: 300g

CE: 10mW

FCC: 2mW

Receiving frequency: 2,400 to 2,483MHz, 4-channel

Demodulation type: FM

Intermediate frequency: 480MHz

Frequency stabilization: ±100ppm

Local leakage at RF input terminal: ≤55dBm

Receiving sensitivity: ≤85dBm

Video output: 1.0Vp-p, 75Ω

Audio output signal impedance: 600Ω

Audio output signal level: 1.25V ±0.25Vp-p/1kHz

Audio output frequency range: 250Hz to 10kHz

Left subcarrier frequency: 6.5MHz

Two-meter electrical cables

Camera rotates 360 degrees mount

Two-power supply adapters

User's manual
