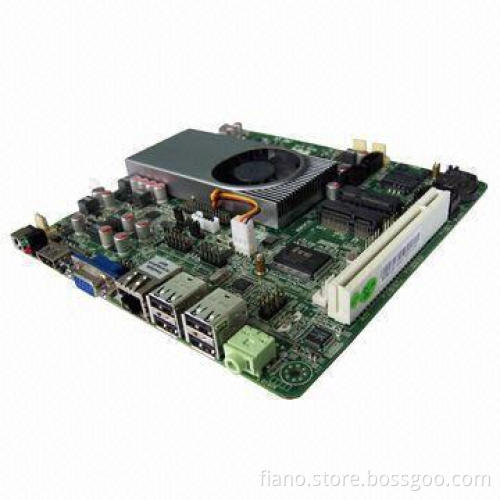

Mini-ITX Motherboard, Atom D2550 Dual-core 1.86GHz, 1 x VGA + 1 x HDMI + 1 x LVDS + 8 x USB+2 x COM

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Western Union, PayPal, T/T, MoneyGram or Cash

Product Description

Features:

Processor: on board Atom D2550 processor, dual-core 1.86GHz
Chipset: Atom D2550 + NM10
Display ports: supports VGA, HDMI, LVDS, supports asynchronous dual-view display
Graphic card: integrated GMA3650 display core
Memory: 1 x SO-DIMM, DDR3, maximum supports 4G
Power supply: 12V DC/5A
HDD: 2 x serial II ATA port, supports 3GB/second, 1 x mini-SATA
LAN: on board 1 x RTL 8105EL 1000Base-T LAN, supports diskless boot and wake on LAN
1 x mini-PCIE + SIM port, supports 3G and Wi-Fi
Sound card: real-tek ACL662 chip, provide 6 sound channel output
Back I/O: 1 x 12V DC, 1 x HDMI®, 1 x VGA, 1 x RJ-45 100M, 4 x USB 2.0, 1 x audio out, 1 x mic
Built-in port: 2 x USB, 1 x VGA, 1 x DC, 1 x COM1, 1 x COM2, 1 x LVDS, 3 x fan port, 1 x mini-SATA, 1 mini- PCIE1 x SIM + 1 x GPIO
BIOS: AMI 16M BIOS, ACPI supported, supports electricity boot
Operating temperature: -20 to 80°C
Humidity: 10 to 90% RH (non-condensing)
Dimensions: mini-ITX (170 x 170mm)
