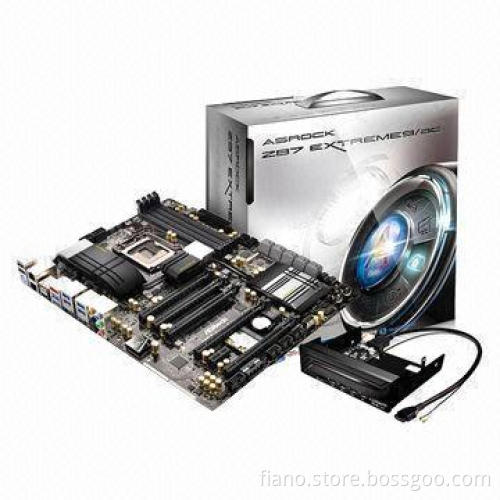

Motherboard, ASRock Z87 EXTREME9/AC LGA1150/Intel Z87/DDR3 ATX, 12-power Phase Design

Get Latest Price

Payment Type:: Western Union, PayPal, T/T, MoneyGram or Cash

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Western Union, PayPal, T/T, MoneyGram or Cash

Product Description

Specifications:

Mfr part number: Z87 EXTREME9/AC
CPU: LGA1150
Supports 4th generation Intel Core i7/i5/i3/Pentium/Celeron/Xeon processor
Digital power design
12-power phase design
Dual-stack MOSFET (DSM)
Supports Intel Turbo Boost 2.0 technology
Supports Intel K-series unlocked CPUs
Supports ASRock BCLK full-range over-clocking
Chipset: Intel Z87
Memory: 4x DDR3-2933+ (OC)/2800 (OC)/2400 (OC)/2133(OC)/1866(OC)/1600/1333/1066 DIMM slots, dual channel, Non-ECC, Unbuffered, maximum capacity of 32GB
Slots: 5x PCI-Express 3.0 x 16 slots (run at x16 or x16/x16 or x8/x8/x16 or x8/x8/x8/x8), 1x PCI-Express 2.0 x1 slot, 1x mini PCI-Express slot (for Wi-Fi + BT module)
Multi-graphics: supports AMD Quad CrossFireX, 3-way CrossFireX, CrossFireX and NVIDIA Quad SLI, 3-way SLI, SLI technology
SATA: 10x SATA3 ports, six supports RAID 0, 1, 5, 10
Audio: Realtek ALC1150 7.1-Channel high-definition audio codec
Supports premium Blu-ray audio
LAN: Giga PHY Intel I217V and GigaLAN Intel I211AT Gigabit Ethernet controllers, 802.11a/b/g/n/ac Wireless LAN (2.4/5GHz), Bluetooth 4.0/3.0
Ports: 12 x USB3.0 (6 rear, 6 via headers), 9 x USB2.0 ports (2 rear, 6 via headers, 1 type A), 1 x PS/2 mouse/keyboard port, 1 x HDMI® port, 1 x DisplayPort, 2 x thunderbolt ports, 1 x optical S/PDIF out, 1 x eSATA port, 2 x RJ45 LAN ports, audio I/O jacks
Power connector: 1 x 24-pin ATX power connector, 2 x 8-pin 12V power connectors, 1 x SLI/XFire power connector
Form factor: ATX

Mfr part number: Z87 EXTREME9/AC

CPU: LGA1150

Supports 4th generation Intel Core i7/i5/i3/Pentium/Celeron/Xeon processor

Digital power design

12-power phase design

Dual-stack MOSFET (DSM)

Supports Intel Turbo Boost 2.0 technology

Supports Intel K-series unlocked CPUs

Supports ASRock BCLK full-range over-clocking

Chipset: Intel Z87

Memory: 4x DDR3-2933+ (OC)/2800 (OC)/2400 (OC)/2133(OC)/1866(OC)/1600/1333/1066 DIMM slots, dual channel, Non-ECC, Unbuffered, maximum capacity of 32GB

Slots: 5x PCI-Express 3.0 x 16 slots (run at x16 or x16/x16 or x8/x8/x16 or x8/x8/x8/x8), 1x PCI-Express 2.0 x1 slot, 1x mini PCI-Express slot (for Wi-Fi + BT module)

Multi-graphics: supports AMD Quad CrossFireX, 3-way CrossFireX, CrossFireX and NVIDIA Quad SLI, 3-way SLI, SLI technology

SATA: 10x SATA3 ports, six supports RAID 0, 1, 5, 10

Audio: Realtek ALC1150 7.1-Channel high-definition audio codec

Supports premium Blu-ray audio

LAN: Giga PHY Intel I217V and GigaLAN Intel I211AT Gigabit Ethernet controllers, 802.11a/b/g/n/ac Wireless LAN (2.4/5GHz), Bluetooth 4.0/3.0

Ports: 12 x USB3.0 (6 rear, 6 via headers), 9 x USB2.0 ports (2 rear, 6 via headers, 1 type A), 1 x PS/2 mouse/keyboard port, 1 x HDMI® port, 1 x DisplayPort, 2 x thunderbolt ports, 1 x optical S/PDIF out, 1 x eSATA port, 2 x RJ45 LAN ports, audio I/O jacks

Power connector: 1 x 24-pin ATX power connector, 2 x 8-pin 12V power connectors, 1 x SLI/XFire power connector

Form factor: ATX
