LED patch panelNew

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

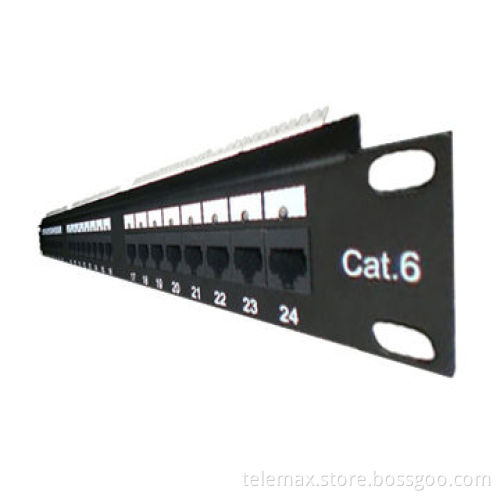

24 ports LED UTP patch panel

19" rack mountable

UTP LED type

ISO9001, RoHS, CE, UL, ETL approval

The structure of each port of this patch panel is same which makes sure that the performance of each port is consistent

Cable manager is combined to patch panel

All kinds of cables with different dimensions can be fixed on the patch panel

T568A punching sequence and T568 B punching sequence are both compatible. Fitting for horizontal distribution in the equipment room and equipment connecting

Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements

Meet TIA/EIA TSB-40

Meet ISO/IEC generic cabling standard 11801

Meet CENELEC generic cabling standard EN50173

Electrical:

Angle:180 Degree
Termination: 110 Type
Current rating: 1.5 Amp maximum
Voltage rating: 150 volts
Contact resistance: 20 m-Ohms
Insulation resistance: 500M-Ohms
Dielectric withstand voltage: 1,000V AC RMS, 60Hz 1min

Materials:

Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG solid wire
PCB: FR4 1.6mm( 0.04") thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018") diameter phosphor bronze with 50 u" gold plating on contact area

Angle:180 Degree

Termination: 110 Type

Current rating: 1.5 Amp maximum

Voltage rating: 150 volts

Contact resistance: 20 m-Ohms

Insulation resistance: 500M-Ohms

Dielectric withstand voltage: 1,000V AC RMS, 60Hz 1min

Housing: PC UL94V-0

IDC: PC UL94V-0, Accept 22-26 AWG solid wire

PCB: FR4 1.6mm( 0.04") thickness, 2 layers

Contact: PC UL94V-0, 0.45mm(0.018") diameter phosphor bronze with 50 u" gold plating on contact area
