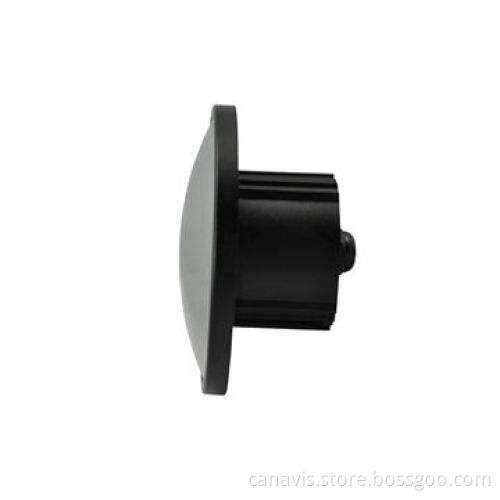

Mini Camera with 1/3-inch Sony Super HAD CCD, 420/520TVL Resolution, 12V DC Power Supply

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Image sensor: 1/3-inch Sony Super HAD CCD

Horizontal resolution: 420/520TVL

Effective pixels:

Shutter speed: 1/50 (1/60) to 1/100,000 seconds

S/N ratio: >48dB (AGC off, black and white)

Lens: 3.6/6, 3.6/6mm (optional)

Signal system: PAL/NTSC

Scanning frequency:

Scanning system: 2:1 interlace

Minimum illumination: 0.1lux (color), 0.01lux (black and white), 0.00lux (IR on)

Synchronization: internal

Video output: 1.0Vp-p composite (75Ω)

Wavelength: 850nm

White balance: auto

Backlight compensation: auto

Auto-gain: auto

Day/night: auto

OSD menu: without OSD

Working temperature: -10 to 50ºC

Storage temperature: -20 to 60ºC

Power supply: 12V DC

Power consumption: <4.9, <5.1W

PAL (H x V): 500 x 582/29 pixels

NTSC (H x V): 510 x 492/25 pixels

PAL (H x V): 752 x 582/44 pixels

NTSC (H x V): 768 x 494/38 pixels

PAL: 1,5625/50Hz

NTSC: 1,5734/59.94Hz
