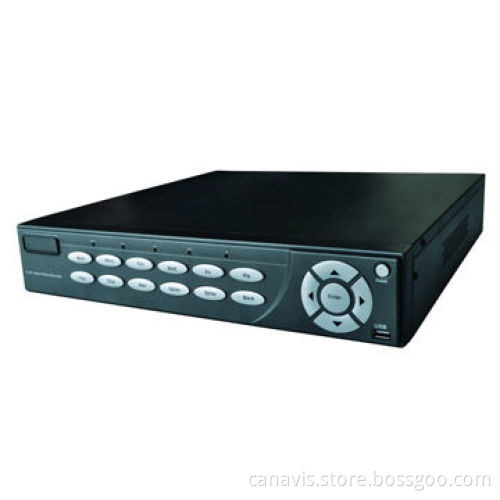

Standalone DVR with 10-90° RH Operating Humidity Range and Measures 440 x 260 x 50mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT

Product Description

Specifications:

Main processor: embedded micro controller
Operating system: embedded Linux
System resource: meanwhile multi-channel video, multi-channel vice streaming, multi-channel playback, multi-channel network operation, USB backup
Operator interface: 16 bit true color graphical menu interface, support the mouse operating
Picture display: 1/4
Coded format: H.264
Video standard PAL (625TVL, 50 pieces/second)
Monitor quality: PAL, D1 (704 x 576P)
Playback quality: PAL, CIF (352 x 288P)
Code capacity PAL, 800fps (CIF)
Audio compression: G711A
Talk back: supported
Picture recording: user's manual, alarm, dynamic detection, timing
Local playback: 1, 4CH
Video query: time point retrieval, calendar retrieval, events retrieval, channel retrieval
Video input: 4CH BNC
Video output: 2CH BNC, 1CH VGA output (supports double output)
Audio input: 4CH RCA
Audio output: 1CH RCA
Alarm input: 4CH
Alarm output: 1CH
Network interface: RJ45 10/100M adaptive Ethernet port
PTZ control: one RS485
USB interfaces 2 pieces
HDD interfaces 2 pieces SATA interfaces
Maximum capacity: 4T
Power supply: 12V/4.15A external power supply/2 pieces 12V/3Aoutput
Power dissipation: <15W (without HDD)
Operating temperatures: 0 to +55°C
Operating humidity range: 10-90% RH
Atoms: 86-106kpa
Size (W x D x H): 440 x 260 x 50mm
Weight: 5.5kg (without HDD)
Installation: table model installation
