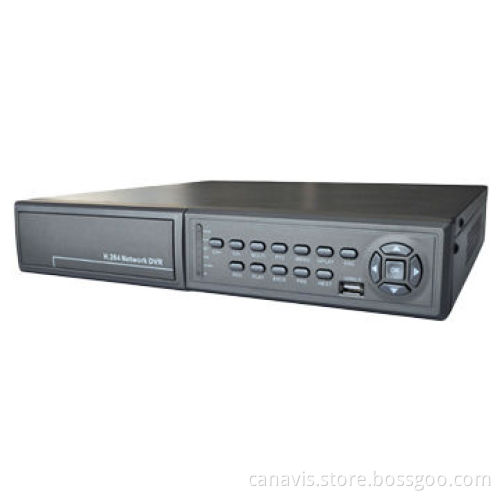

Standalone DVR

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Operating system: Embedded Linux operating system

System resource: Meanwhile multi-channel video, multi-channel vice streaming, multi-channel playback, multi-channel network operation, USB backup

Operator interface: 16 Bit true color graphical menu interface, support the mouse operate

Picture display: 1/4

Coded format: H.264

Video standard: PAL(625TVL, 50pcs/s)

Monitor quality: PAL, D1 (704 x 576)

Playback quality: PAL,CIF (352 x 288)

Code capacity: PAL, 800fps (CIF)

Audio compression: G711A

Talk back: Supported

Picture recording: Manual>alarm>dynamic detection>timing

Local playback: 1ch, 4ch, 8ch

Video query: Time point retrieval, calendar retrieval, events retrieval, channel retrieval

Video input: 32ch BNC

Video output: 2ch BNC,1ch VGA output (support double output)

Audio input: 12ch RCA

Audio output: 1ch RCA

Alarm input: 8ch

Alarm output: 1ch

Network interface: RJ45 10M/100M Adaptive Ethernet port

PTZ control: One RS485

USB interfaces: 2pcs

HDD interfaces: 2pcs SATA interfaces maximum capacity4T

Power supply: 12V/4.15A external power supply/2pcs, 12V/3A output

Power dissipation: <15W (without HDD)

Operating temperatures: 0 - 55

Operating humidity range: 10-90%

Atmosphere range: 86-106kpa

Size: 440(W)x260(D)x50(H)mm

Weight: 5.5KG (without HDD)

Installation: Table model installation
