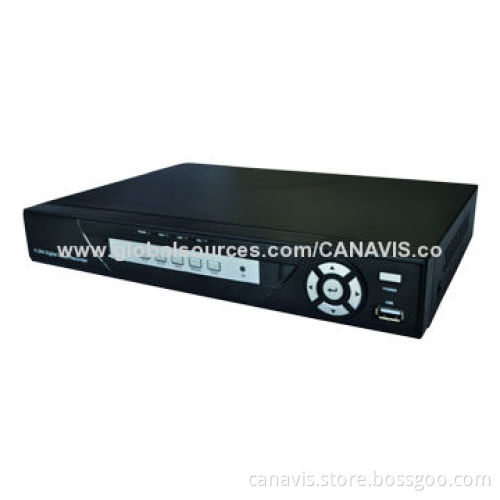

Standalone DVR with 10-90% RH Operating Humidity Range

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Main processor: embedded micro controller

Operating system: embedded

Linux system resource: meanwhile multi-channel video, vice streaming, playback, network operating, USB backup

Operator interface: 16-bit true color graphical menu interface, supports the mouse operating

Picture display: 1/4 coded format: H.264 video standard PAL (625TVL, 50 pieces/second)

Monitor quality: PAL, D1 (704 x 576)

Playback quality: PAL, CIF (352 x 288) code capacity PAL, 800fps (CIF) audio compression: G711A talkback: supported picture recording: manual>alarm>dynamic detection>timing local playback: 1, 4-channel

Video query: time point retrieval, calendar retrieval, events retrieval, channel retrieval

Video input: 4CH BNC Video output: 2CH BNC, 1CH VGA output (support double output)

Audio input: 4CH RCA

Audio output: 1CH RCA

Alarm input: 4CH

Alarm output: 1CH

Network interface: RJ45 10/100Mbps adaptive Ethernet port

PTZ control: one RS485

USB interface: 2 pieces

HDD interface: 2 pieces SATA interface

Maximum capacity: 4T

Power supply: 12V/4.15A external power supply/2 pieces of 12V/3A output

Power dissipation: <15W (without HDD)

Operating temperature: 0 to +55℃

Operating humidity range: 10-90% RH

Atmosphere environment: 86-106kPa

Size (W x D x H): 440 x 260 x 50mm

Weight: 5.5kg (without HDD)

Installation: table model installation
