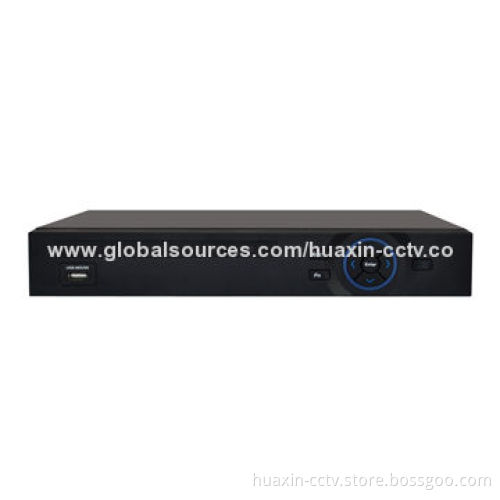

8CH 1,080P Network Video Recorder, 12V/2A Power Supply, Dimensions 300*233*45mm

8CH 1,080P Network Video Recorder, 12V/2A Power Supply, Dimensions 30023345mm

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

System:

Main processor: technical grade embedded microprocessor HI 3520D
Operating system: embedded Linux
System resource: multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel, multi-user network operating, USB backup

Interface:

Operating interface: 16-bit real color GUI interface support mouse operating
Display screen: 1/4-inch (take analog channel as an example, other is base on the selected channel mode)

Video:

Video standard: PAL (625TV lines, 50fps), NTSC (525TV lines, 60fps)
Image encode: H.264 (high-profile)
Monitor quality: VGA, HDMI: high-definition (support 1,920 x 1,080, 1,280 x 720, 1,440 x 900, 1,280 x 1,024, 1,024 x 768, 800 x 600P)
Playback quality: 1,080P
Encode capability: 8-channel 1,080P real-time
Decode capability: 1 x 1,080P real-time
Motion detection: each channel can set 192 (16 x 12) detection areas, can set multi-level of flexibility (for local analog channel only)

Record and playback:

Record mode: manual>alarm>motion detection>timing
Local playback: 1 channel playback
Video search: time, date, event, channel search

Storage and backup:

Space occupation: video: CIF 4-5G/day x channel, D1 16-20G/day x channel, audio: 691.2M/day x channel
Video storage: local HDD, network
Backup mode: network backup, USB portable HDD, USB imprint, SATA imprint

Interface:

Video output: 1CH CVBS/BNC (1.0Vp-p, 75Ω), 1CH VGA, 1CH HDMI
Audio output: 1CH
Network port: RJ45 10/100M self-adaptive Ethernet port
USB ports: 2 x USB2.0
HDD port: 2 SATA ports (each maximum to 4TB)

Others:

Power supply: 12V/2A
Consumption: <15W (not including HDD)
Temperature: 0-+55℃
Humidity: 10-90% RH
Atmosphere pressure: 86-106kPa
Dimensions (L x W x H): 300*233*45mm
Weight: 1.5kg

Main processor: technical grade embedded microprocessor HI 3520D

Operating system: embedded Linux

System resource: multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel, multi-user network operating, USB backup

Operating interface: 16-bit real color GUI interface support mouse operating

Display screen: 1/4-inch (take analog channel as an example, other is base on the selected channel mode)

Video standard: PAL (625TV lines, 50fps), NTSC (525TV lines, 60fps)

Image encode: H.264 (high-profile)

Monitor quality: VGA, HDMI: high-definition (support 1,920 x 1,080, 1,280 x 720, 1,440 x 900, 1,280 x 1,024, 1,024 x 768, 800 x 600P)

Playback quality: 1,080P

Encode capability: 8-channel 1,080P real-time

Decode capability: 1 x 1,080P real-time

Motion detection: each channel can set 192 (16 x 12) detection areas, can set multi-level of flexibility (for local analog channel only)

Record mode: manual>alarm>motion detection>timing

Local playback: 1 channel playback

Video search: time, date, event, channel search
